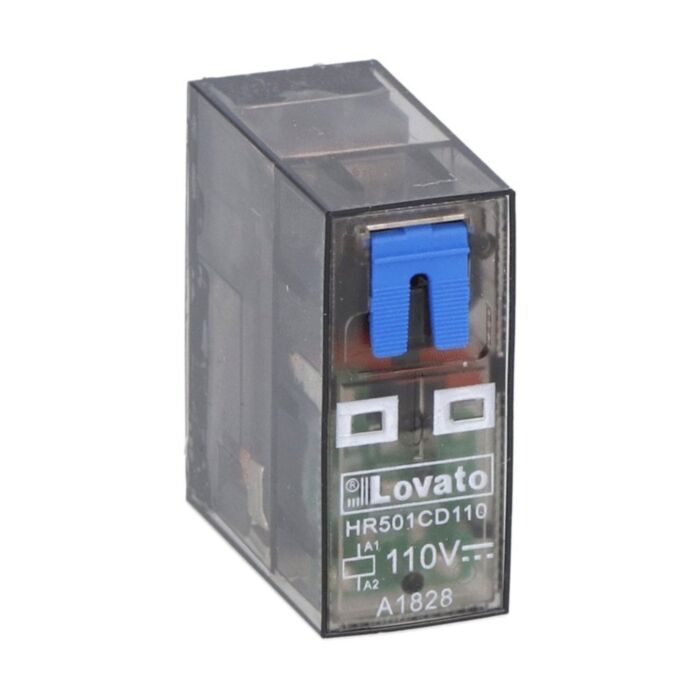

HR501CD110 - MINIATURE RELAY 1C/O 16A 110VDC + LED
MPN: HR501CD110
Special Price
£7.03
£5.86
Regular Price
£11.72
Why Choose the HR501CD110?
Designed for reliable control and signalling, the Lovato HR501CD110 miniature relay (SKU HR501CD110) combines a 110VDC coil with a 1 C/O contact and 16 A Ith in free air. An integrated LED state indicator and mechanical actuator simplify status checks and testing. Rated Ui 250 V and Uimp 6 kV, it fits HR5XS2... sockets (max 10 A on socket).
Built to IEC/EN 61810 with a mechanical life of 10000000 cycles, this HR501C-designated relay performs across -40 to +70 °C environments and stores safely to +85 °C. It supports compact panel layouts and dependable isolation in automation, machinery and HVAC circuits, helping you streamline wiring, speed diagnostics and maintain uptime without compromising on performance or durability.
Key Benefits
- Clear status at a glance with integrated LED state indicator.
- Manual testing and override enabled via mechanical actuator.
- 16 A Ith in free air for robust switching performance.
- Strong insulation: Ui 250 V and 6 kV impulse withstand.
- Long service life with 10000000 mechanical cycles.
- Wide operating range from -40 to +70 °C.
- Fits HR5XS2... sockets; max 10 A when socket-mounted.
- Conforms to IEC/EN 61810 for assured reliability.
Technical Specification
- Product type designation: HR501C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Mechanical life: 10000000 cycles
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +85 °C
What’s Included
- Lovato HR501CD110 miniature relay
- Basic installation and safety guidance
- Protective packaging for transport
Applications
- Industrial control panels and automation I/O switching
- Machinery interlocks and auxiliary power circuits
- HVAC and building services control systems
- Signalling and status indication circuits with 110VDC coils
- General-purpose switching where a compact 1 C/O relay is required
Frequently Asked Questions
What coil voltage does the Lovato HR501CD110 use?
The relay uses a 110VDC control voltage.
What is the contact configuration and current rating?
It has 1 C/O contact and 16 A Ith in free air; when socket-mounted, max 10 A.
Does it include an LED indicator and mechanical actuator?
Yes, it features an LED state indicator and a mechanical actuator.
What standards does this relay conform to?
It conforms to IEC/EN 61810.
What are the operating and storage temperature ranges?
Operating range is -40 to +70 °C; storage is -40 to +85 °C.
Safety note: Install and commission only by qualified personnel. Observe voltage and current limits, including the 10 A maximum when used with HR5XS2... sockets, and isolate power before any work.
| Manufacturer Part Number | HR501CD110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975234495 |
