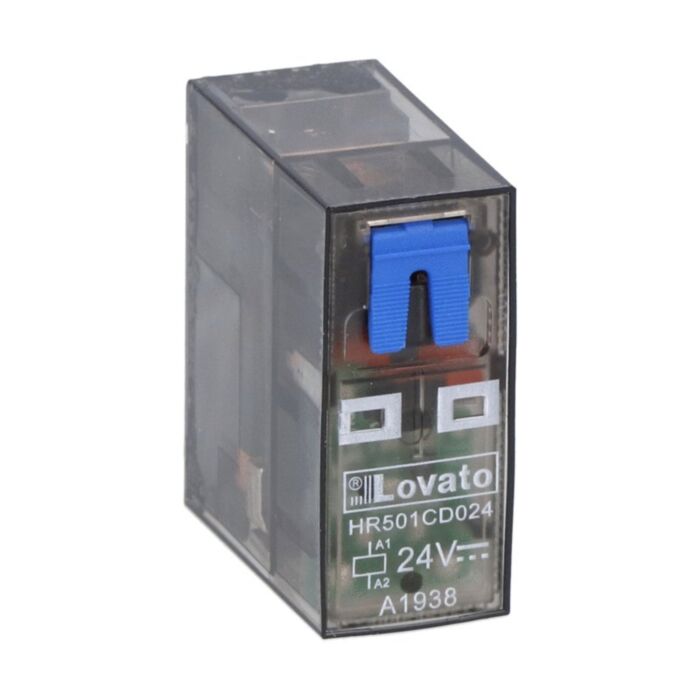

HR501CD024 - MINIATURE RELAY 1C/O 16A 24VDC + LED

Why Choose the HR501CD024?

Engineered for reliable control, the Lovato HR501CD024 miniature relay combines a 24VDC coil with a single 1 C/O contact rated 16 A Ith in free air. An integrated LED state indicator and mechanical actuator aid rapid diagnostics and testing. Designed to fit HR5XS2... sockets (max 10 A), this compact relay delivers dependable switching performance for panels and machinery where space and clarity matter.

Built on the HR501C platform, it offers 250 V rated insulation and 6 kV impulse withstand for robust isolation, plus a mechanical life of 10,000,000 cycles. Operating from -40 to +70 °C, it meets IEC/EN 61810 and supports sustainability goals. Ideal for control circuits, signalling and power interlocking where a clear visual indication and manual actuation are advantageous.

Key Benefits

• Clear status at a glance with integrated LED indicator.
• Manual testing and override via mechanical actuator.
• Versatile 1 C/O contact for changeover switching tasks.
• 16 A Ith in free air; 10 A when on HR5XS2... socket.
• Robust insulation: 250 V Ui and 6 kV impulse withstand.
• Wide -40 to +70 °C operating temperature range.
• Long mechanical life rated to 10,000,000 cycles.
• Conforms to IEC/EN 61810 for assured reliability.

Technical Specification

• Product type designation: HR501C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 16 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C

What’s Included

• 1 x Lovato HR501CD024 miniature relay (HR501C platform)
• Relay with LED state indicator and mechanical actuator
• Socket not included; fits HR5XS2... base (sold separately)

Applications

• Control panels and machinery switching
• Signalling and indication circuits
• Power interlocking and auxiliary switching
• Equipment requiring compact, reliable relays

Safety note: Install and operate within the stated ratings and temperature range. When using HR5XS2... sockets, observe the 10 A maximum and follow applicable standards and electrical regulations.
