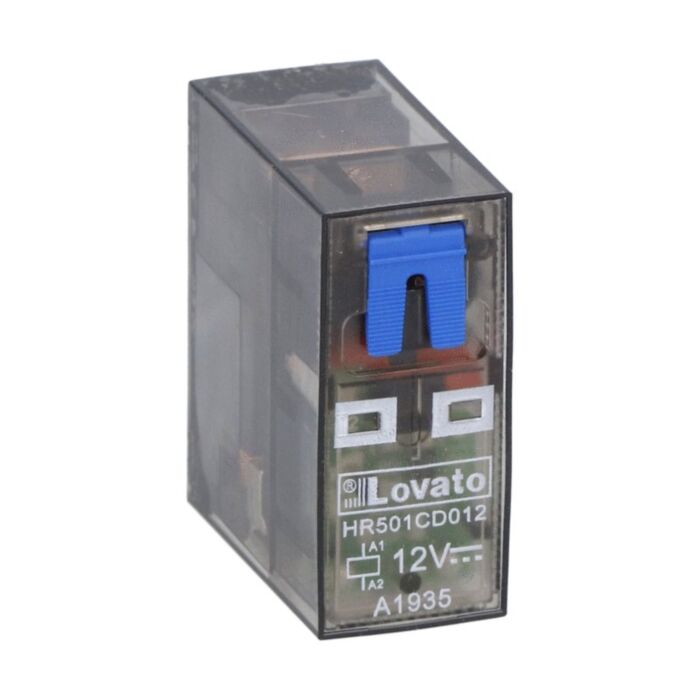

HR501CD012 - MINIATURE RELAY 1C/O 16A 12VDC + LED
MPN: HR501CD012
Special Price
£4.92
£4.10
Regular Price
£8.20
Why Choose the HR501CD012?
Lovato’s HR501CD012 miniature relay delivers reliable switching for modern control panels. With a 12VDC coil and a 1 C/O changeover contact, it supports general-purpose loads up to 16A Ith. The integrated LED state indicator and mechanical actuator simplify status checks and manual testing. Designed for fitting on HR5XS2... sockets (max 10A on socket), it streamlines installation in compact spaces.
Built for durability, the HR501C designation offers a rated insulation voltage of 250 V and 6 kV impulse withstand. It achieves 10,000,000 mechanical life cycles and operates from -40 to +70 °C, with storage down to -40 to +85 °C. Compliant with IEC/EN 61810 and aligned to sustainability certification, it’s a dependable miniature relay for demanding UK industrial environments.
Key Benefits
- Clear LED state indication for rapid status checking.
- Mechanical actuator enables manual operation and testing.
- 12VDC coil suits low-voltage control circuits.
- 1 C/O contact versatility for changeover switching.
- 16A Ith rating for robust general-purpose loads.
- Compatible with HR5XS2... sockets (max 10A on socket).
- Wide -40 to +70°C operating temperature range.
Technical Specification
- Product type designation: HR501C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Mechanical life: 10000000 cycles
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +85 °C
What’s Included
- Lovato HR501CD012 miniature relay
- Integrated LED indicator and mechanical actuator
- Manufacturer packaging
Applications
- Control circuits requiring a 12VDC coil and 1 C/O contact
- Industrial automation and panel building
- Signal switching and interlocking duties
- General-purpose load control up to 16A Ith
- Use in environments from -40 to +70°C
Frequently Asked Questions
What is the control voltage of the Lovato HR501CD012?
The relay has a 12VDC control (coil) voltage.
What contact configuration and current rating does it provide?
It has a 1 C/O changeover contact with 16A Ith; on HR5XS2... sockets the socket limit is 10A.
Does it include an LED and a mechanical actuator?
Yes. The LED shows the relay status and the mechanical actuator allows manual operation.
What are the operating temperature and mechanical life?
It operates from -40 to +70 °C and offers 10,000,000 mechanical life cycles.
Which standards does this relay meet?
It complies with IEC/EN 61810 and features 250 V insulation and 6 kV impulse withstand.
Safety note: Installation and maintenance should be performed by qualified personnel. De-energise circuits before handling and observe the HR5XS2... socket current limitation of 10A.
| Manufacturer Part Number | HR501CD012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975233467 |
