HR501CA230 - MINIATURE RELAY 1C/O 16A 230VAC + LED

Why Choose the HR501CA230?

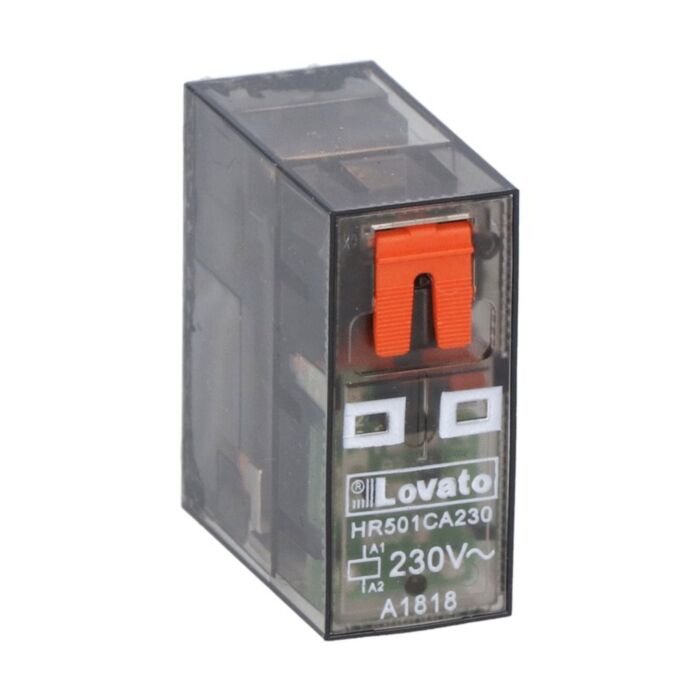

The Lovato HR501CA230 miniature relay combines reliable switching with clear visual feedback. With a 230VAC coil and a 1 C/O changeover contact, it features an LED state indicator for instant status and a mechanical actuator for manual testing. Rated at 16 A Ith in free air, it provides robust performance in compact control panels and automation projects where dependable, space-saving relays are essential.

Engineered for longevity and resilience, the HR501C platform delivers 10,000,000 mechanical cycles, Ui 250 V insulation and 6 kV impulse withstand. It operates from -40 to +70 °C and conforms to IEC/EN 61810 for assured compliance. For base mounting, it fits socket HR5XS2... where the circuit limit is 10 A; select wiring and protection to suit the application and ratings.

Key Benefits

• Clear LED state indicator for rapid status checks.
• Manual mechanical actuator enables testing and override onsite.
• 230VAC coil suits mains control circuits without transformers.
• 1 C/O contact provides versatile changeover control.
• 16 A Ith rating for robust free-air performance.
• 6 kV impulse withstand improves insulation coordination.
• 10,000,000-cycle mechanical life supports high-duty operation.
• Operates reliably from -40 to +70 °C.

Technical Specification

• Product type designation: HR501C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 16 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR501CA230 miniature relay
• Product datasheet (downloadable)
• Protective packaging
• Basic product information

Applications

• Control panels and switchgear assemblies
• Industrial automation I/O and interlocking
• Building services and HVAC control circuits
• Lighting and signalling changeover
• General-purpose changeover in machinery auxiliaries

Safety note: Install and operate by qualified personnel only. Observe all voltage, current and socket limits, and isolate the supply before wiring or maintenance.
