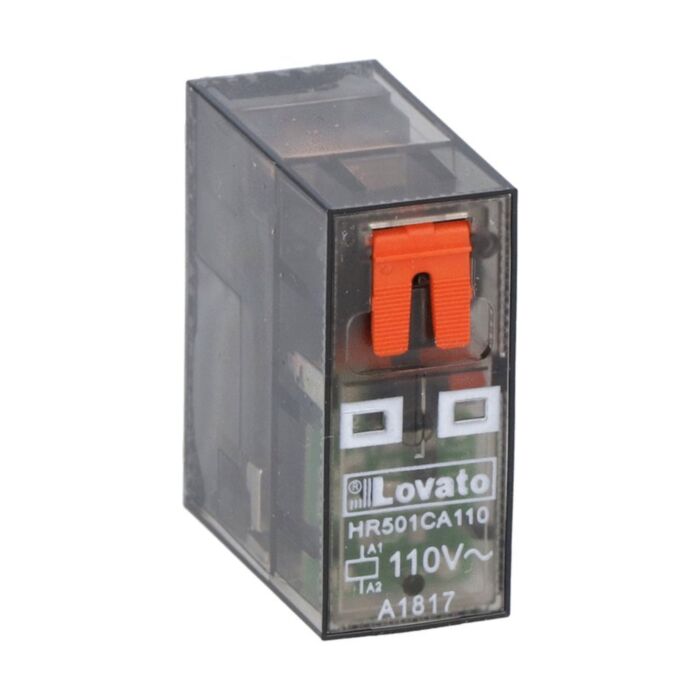

HR501CA110 - MINIATURE RELAY 1C/O 16A 110VAC + LED
MPN: HR501CA110
Special Price
£6.35
£5.29
Regular Price
£10.58
Why Choose the HR501CA110?
Lovato’s HR501CA110 miniature relay (SKU HR501CA110) delivers dependable switching for compact control panels. It integrates an LED state indicator and a mechanical actuator for quick status checks and manual testing. The 110/120VAC coil drives a single 1 C/O contact, with an IEC Ith of 16A. Fitting on socket HR5XS2... (max 10A), it supports efficient, space‑saving installation across industrial and building services projects.
Built for longevity and electrical robustness, the HR501CA110 offers Ui 250 V and Uimp 6 kV, plus a mechanical life of 10,000,000 cycles. Reliable operation from −40 to +70 °C, with storage to −40 to +85 °C, helps in harsh environments. Conforming to IEC/EN 61810 and carrying Sustainability certification, it ensures consistent performance in demanding control applications.
Key Benefits
- LED state indicator provides immediate visual confirmation of coil energisation.
- Mechanical actuator enables manual operation and functional testing on site.
- 1 C/O contact offers versatile SPDT switching for control circuits.
- 16 A IEC Ith supports robust loads in free air conditions.
- 110/120VAC coil suits common industrial and building services supplies.
- High insulation: Ui 250 V and 6 kV impulse withstand.
- Wide operating temperature range −40 to +70 °C for reliability.
Technical Specification
- Product type designation: HR501C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Mechanical life: 10000000 cycles
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +85 °C
What’s Included
- HR501CA110 miniature relay
- Manufacturer documentation (datasheet/specification)
- Protective packaging
Applications
- Control panels and PLC interfacing
- Machine automation and interlocking circuits
- HVAC and building services control systems
- Industrial signalling and alarm circuits
- General-purpose switching up to 16 A Ith
Frequently Asked Questions
What coil voltage does the Lovato HR501CA110 use?
The control voltage is 110VAC and it is suitable for 110/120VAC systems.
What is the contact configuration and rating?
It has 1 C/O (SPDT) contact with an IEC conventional free air thermal current of 16 A.
Which socket is it designed to fit?
It fits HR5XS2... sockets; when used on the socket, the rating is max 10A.
What are its environmental and endurance ratings?
Operating temperature is −40 to +70 °C, storage −40 to +85 °C, with mechanical life of 10,000,000 cycles.
Does it provide visual indication or manual control?
Yes, it includes an LED state indicator and a mechanical actuator for manual operation and testing.
Safety note: Install and service by qualified personnel only. Isolate power before wiring, observe Ui 250 V and Uimp 6 kV limits, and do not exceed 16 A Ith or the socket’s 10 A rating. Operate within the specified temperature range.
| Manufacturer Part Number | HR501CA110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975233498 |
