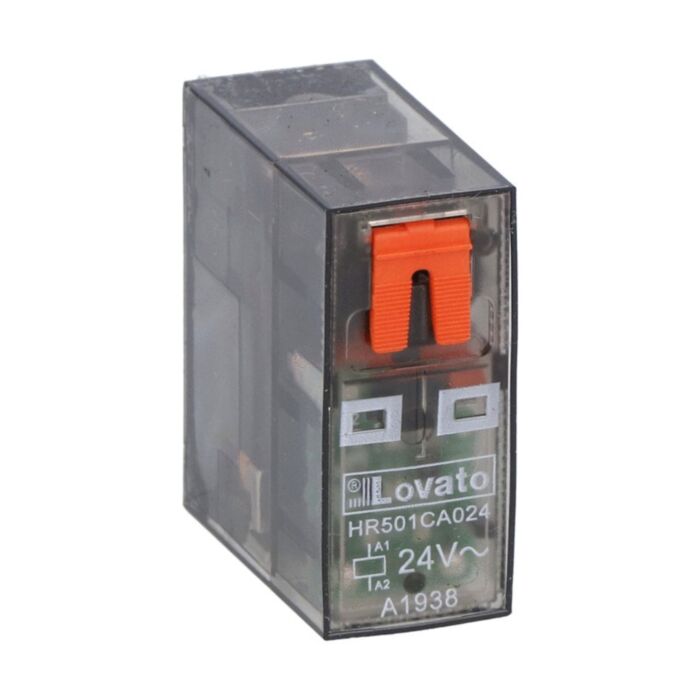

HR501CA024 - MINIATURE RELAY 1C/O 16A 24VAC + LED
MPN: HR501CA024
Special Price
£5.59
£4.66
Regular Price
£9.31
Why Choose the HR501CA024?
The Lovato HR501CA024 miniature relay delivers dependable switching in a compact footprint for OEMs and panel builders. Designed for 24VAC control with a single 1 C/O contact, it includes an LED state indicator for instant status and a mechanical actuator for quick testing. With Ith 16 A (IEC) and fitting on socket HR5XS2... (max 10A), it streamlines installation in space-constrained control assemblies.
Engineered for robust service, the HR501C series offers Ui 250 V and 6 kV impulse withstand, backed by 10,000,000 mechanical cycles. It operates from -40 to +70 °C and stores from -40 to +85 °C, conforming to IEC/EN 61810. A sustainable choice, this miniature relay supports reliable 24VAC control across industrial automation, HVAC, and building services applications.
Key Benefits
- LED state indicator provides immediate status visibility during commissioning.
- Mechanical actuator allows quick functional checks and diagnostics.
- 16 A Ith (IEC) capability for robust general-purpose switching.
- Fits HR5XS2... sockets; note socket rating is max 10A.
- Rated insulation voltage Ui 250 V to IEC/EN requirements.
- 6 kV impulse withstand helps resist transient overvoltages.
- Wide operating range from -40 to +70 °C.
- Long mechanical life of 10,000,000 cycles reduces downtime.
Technical Specification
- Product type designation: HR501C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Mechanical life: 10000000 cycles
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +85 °C
What’s Included
- Lovato HR501CA024 miniature relay
- Integrated LED state indicator and mechanical actuator
- Installation and safety information
Applications
- Industrial automation panels and control cabinets
- HVAC and building services control circuits
- Machine interlocks, signalling and auxiliary functions
- Lighting and pump control via single changeover contact
- Test and maintenance scenarios requiring manual actuation
Frequently Asked Questions
What control voltage does the Lovato HR501CA024 use?
It has a 24VAC control voltage. Ensure your control circuit supplies 24VAC.
What is the contact configuration and current rating?
It provides a 1 C/O contact with Ith 16 A (IEC). When fitted on HR5XS2... sockets, the socket rating is max 10A.
Does it include an LED and a mechanical actuator?
Yes, it features an LED state indicator and a mechanical actuator for testing.
Which mounting socket is compatible?
It fits on HR5XS2... sockets. Observe the socket’s 10A maximum rating.
What standards and environmental limits does it meet?
It conforms to IEC/EN 61810 and operates from -40 to +70 °C. Storage temperature is -40 to +85 °C.
Safety note: Install and service by qualified personnel only. De-energise circuits before handling, and operate strictly within the stated electrical and thermal ratings, observing the HR5XS2 socket’s 10A limit when fitted.
