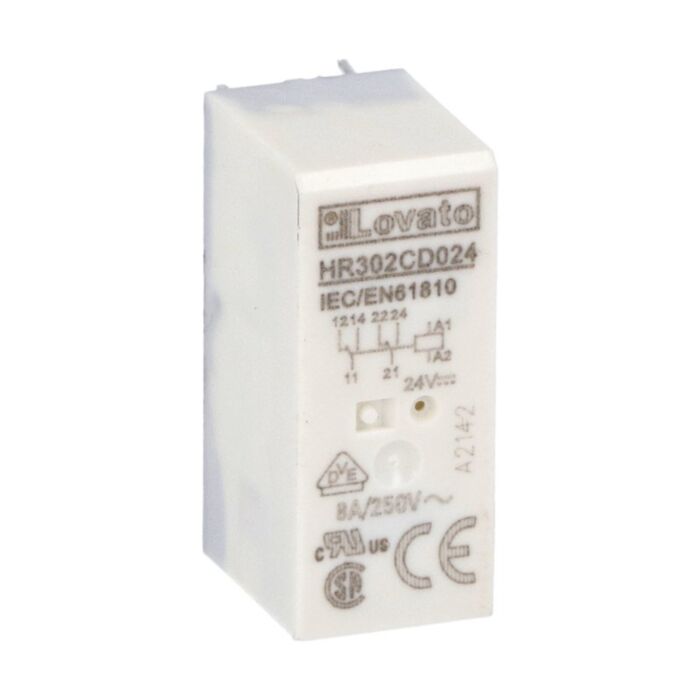

HR302CD024 - MINIATURE RELAY 2C/O 10A, 24VDC

Why Choose the HR302CD024?

Lovato HR302CD024 is a robust miniature relay designed for compact control panels and reliable switching. With a 24VDC coil and two changeover contacts (2 C/O), it delivers an IEC conventional free air thermal current of 8 A. The relay fits the HR5XS2 socket for quick, tidy installation and service. Rated insulation of 250 V and 6 kV impulse withstand help ensure dependable isolation in demanding industrial control and signalling circuits.

Engineered for longevity, the HR302C series offers a mechanical life of 10,000,000 cycles and operates reliably from -40 to +85 °C, matching harsh ambient conditions. Conformity to IEC/EN 61810 supports assured performance and compliance in UK and EU markets. With no LED state indicator or mechanical actuator, this relay keeps layouts simple while reducing complexity, and its Sustainability certification aligns with modern specification requirements.

Key Benefits

• Reliable 24VDC coil control for consistent switching performance
• Two changeover contacts provide flexible circuit configurations
• 8 A Ith capability for robust general-purpose switching
• 250 V rated insulation enhances electrical separation and safety
• 6 kV impulse withstand improves surge resilience
• Wide -40 to +85 °C operating temperature range
• Long mechanical life of 10,000,000 cycles reduces maintenance
• Fits HR5XS2 socket for fast, compact panel installation

Technical Specification

• Product type designation: HR302C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 8 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +85 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR302CD024 miniature relay unit
• Manufacturer’s product information

Applications

• Control and signalling circuits requiring a 24VDC coil
• General-purpose switching up to 8 A Ith
• Compact control panels using HR5XS2 relay sockets
• Installations operating across wide ambient temperatures
• Systems requiring IEC/EN 61810 compliant components

Safety note: Install and service only by qualified personnel. De-energise equipment before handling, use the specified HR5XS2 socket, and operate strictly within the stated ratings and standards.
