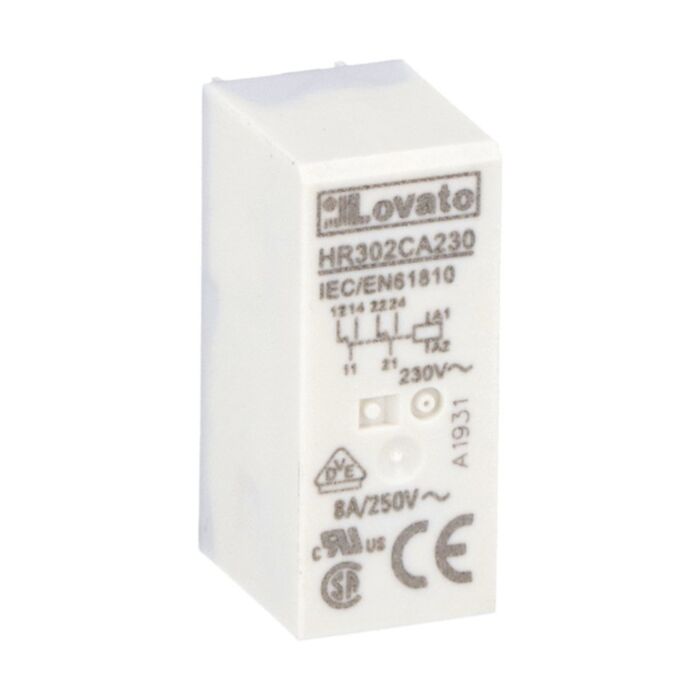

HR302CA230 - MINIATURE RELAY 2C/O 10A, 230VAC

Why Choose the HR302CA230?

Lovato’s HR302CA230 miniature relay delivers reliable switching for control panels and automation. With a 230VAC control voltage, 2 C/O changeover contacts and an 8 A Ith rating, it suits a wide range of general-purpose circuits. Designed to fit socket HR5XS2, it conforms to IEC/EN 61810 for assured performance. The compact HR302C designation ensures straightforward identification and integration in your existing relay bases.

Built for endurance, this miniature relay offers a 10,000,000-cycle mechanical life and withstands harsh environments from -40 to +85 °C. Electrical robustness includes Ui 250 V insulation and 6 kV impulse withstand. For simplified designs, there is no mechanical actuator and no LED state indicator. Manufactured by Lovato, it provides dependable performance where compact, 230VAC-controlled changeover switching is required.

Key Benefits

• 230VAC control voltage for straightforward control integration.
• Two C/O changeover contacts provide flexible switching options.
• 8 A Ith rating supports reliable switching of moderate loads.
• High mechanical life of 10,000,000 cycles reduces maintenance.
• Robust insulation Ui 250 V and 6 kV impulse withstand.
• Wide -40 to +85 °C operating temperature for harsh environments.
• Conforms to IEC/EN 61810 for assured quality and performance.
• Fits HR5XS2 socket for quick installation and replacement.

Technical Specification

• Product type designation: HR302C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 8 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +85 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR302CA230 miniature relay
• Manufacturer datasheet (downloadable)
• Original manufacturer packaging

Applications

• Control panels and distribution boards
• Industrial automation signal and load switching
• Machinery interlocking and control circuits
• HVAC and building management controls
• General-purpose 230VAC coil relay interfaces

Safety note: Install and maintain only by qualified personnel. Isolate power before wiring, use the specified socket, and operate within the stated electrical and temperature ratings in accordance with IEC/EN 61810 and local regulations.
