HR302CA110 - MINIATURE RELAY 2C/O 10A, 110VAC
MPN: HR302CA110
Special Price
£6.32
£5.27
Regular Price
£10.54
Why Choose the HR302CA110?

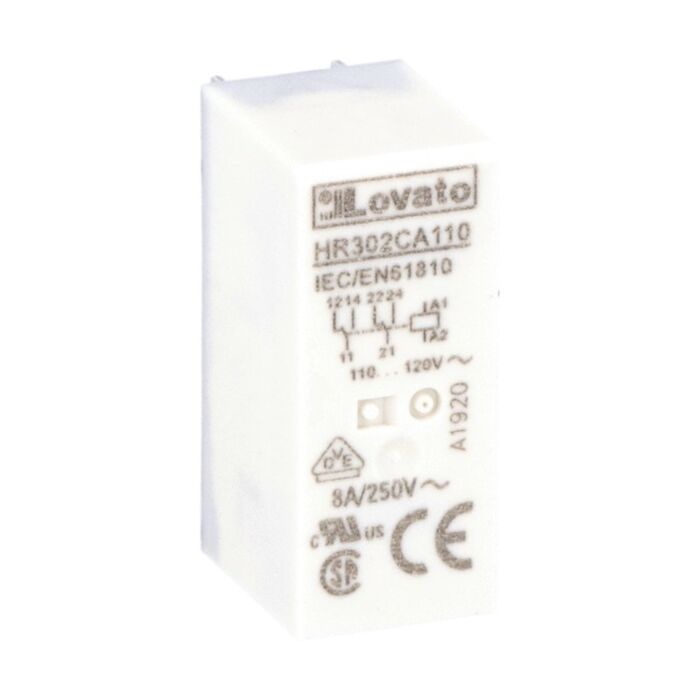

Lovato’s HR302CA110 miniature relay offers dependable switching in a compact footprint. It features a 110/120VAC control coil and two changeover (2 C/O) contacts with 8 A IEC conventional free‑air thermal current (Ith). It fits the HR5XS2 socket for straightforward installation. As a miniature relay from Lovato, it delivers a practical combination of size and capability for control circuits.
The product type designation is HR302C, with Ui 250 V and 6 kV impulse withstand (Uimp) for insulation performance, and mechanical life rated at 10,000,000 cycles. It operates from -40 to +85 °C and conforms to IEC/EN 61810. An LED state indicator is not included, and there is no mechanical actuator. Lovato indicates Sustainability certification for this product.
Key Benefits
- 110/120VAC control coil suits common AC control supply requirements.
- Two changeover contacts (2 C/O) enable flexible changeover switching.
- 8 A IEC conventional free‑air thermal current for robust capability.
- Compact miniature relay form factor fits HR5XS2 socket for quick installation.
- High insulation performance: Ui 250 V and Uimp 6 kV.
- Wide operating temperature range from -40 to +85 °C.
- Long mechanical life rated at 10,000,000 cycles for reliability.
- Conforms to IEC/EN 61810 for assured compliance.
Technical Specification
- Product type designation: HR302C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 8 A
- Mechanical life: 10000000 cycles
- Operating temperature: -40 to +85 °C
- Storage temperature: -40 to +85 °C
What’s Included
- Lovato HR302CA110 miniature relay unit
- Manufacturer packaging
- Basic product information leaflet (where supplied)
Applications
- Control circuits using 110/120VAC relay coils
- Changeover switching with 2 C/O contacts
- Installations requiring up to 8 A free‑air thermal current
- Socket‑mounted assemblies using HR5XS2
- Equipment designed to IEC/EN 61810 requirements
Frequently Asked Questions
What control voltage does the HR302CA110 coil require?
The relay control voltage is 110...120VAC.
What is the contact configuration of this miniature relay?
It has 2 changeover contacts (2 C/O).
What is the IEC conventional free‑air thermal current (Ith)?
The Ith is 8 A under IEC conditions.
Which socket is this relay designed to fit?
It fits the HR5XS2 socket.
Does it include an LED indicator or mechanical actuator?
LED state indicator: No. Mechanical actuator: No.
Safety note: Install and service by qualified personnel. Isolate power before handling. Observe Ui/Uimp insulation ratings and the -40 to +85 °C limits. Use the correct HR5XS2 socket.
| Manufacturer Part Number | HR302CA110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975233351 |
