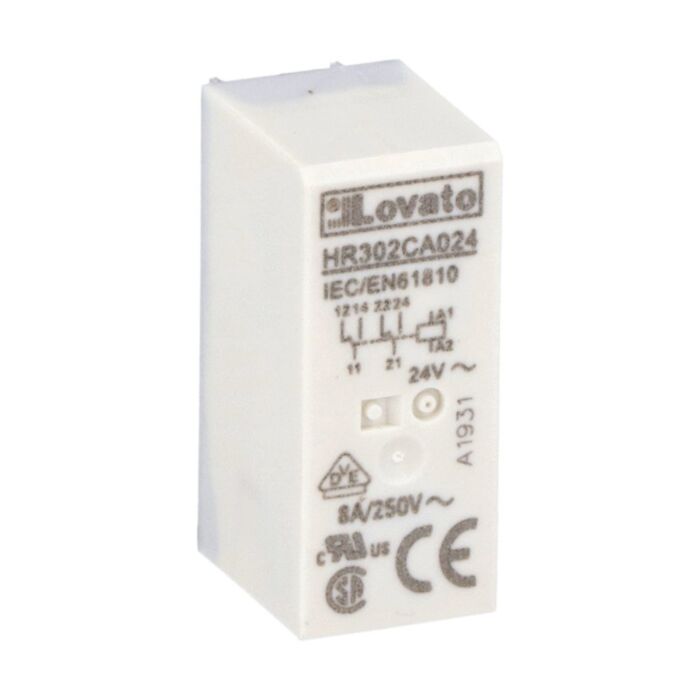

HR302CA024 - MINIATURE RELAY 2C/O 10A, 24VAC

Why Choose the HR302CA024?

Lovato HR302CA024 is a compact, industrial-grade miniature relay designed for reliable switching in control panels and machinery. With a 24VAC relay control voltage, 2 C/O contacts and an 8 A IEC conventional free air thermal current, it delivers dependable performance in tight spaces. Rated insulation voltage is 250 V with 6 kV impulse withstand, and it fits socket HR5XS2 for quick installation. A wide -40 to +85 °C operating range supports demanding environments.

Built on the HR302C platform and compliant with IEC/EN 61810, this relay offers a 10,000,000-cycle mechanical life for long service. With no mechanical actuator and no LED state indicator, it provides straightforward, durable operation where simplicity is preferred. The robust insulation and impulse ratings enhance noise immunity, making it a dependable choice for OEMs, panel builders and maintenance teams seeking a 24VAC, 2 C/O solution across varied ambient conditions.

Key Benefits

• Compact miniature relay saves panel space on dense builds.
• 24VAC control coil suits common control circuits and HVAC supplies.
• 2 C/O contacts provide flexible changeover switching options.
• 8 A Ith supports robust switching of moderate loads.
• 6 kV impulse withstand and 250 V insulation enhance resilience.
• Wide -40 to +85 °C operating range for harsh environments.
• Fits socket HR5XS2 for fast, reliable installation and maintenance.

Technical Specification

• Product type designation: HR302C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 8 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +85 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR302CA024 miniature relay
• Product datasheet (PDF)
• Basic installation and safety information
• Protective packaging

Applications

• Control panels and switchgear assemblies
• HVAC and building services using 24VAC control
• OEM machinery and equipment changeover functions
• PLC and I/O interfacing for moderate loads
• General industrial automation and maintenance spares

Safety note: Installation should be performed by qualified personnel. Observe the 8 A current limit, 24VAC coil rating and IEC/EN 61810 requirements; use the HR5XS2 socket and ensure proper insulation clearances.
