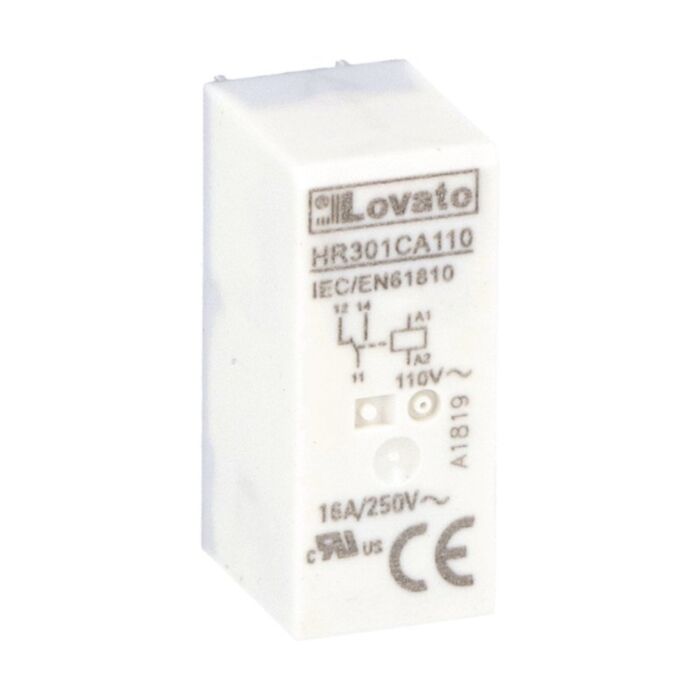

HR301CA110 - MINIATURE RELAY 1C/O 16A, 110VAC
MPN: HR301CA110
Special Price
£5.75
£4.79
Regular Price
£9.58
Why Choose the HR301CA110?
Designed for dependable switching in compact panels, the Lovato HR301CA110 miniature relay combines a 110/120VAC control coil with a single 1 C/O changeover contact rated to 16 A Ith. The HR301CA110 fits HR5XS2... sockets for quick installation (socket max 10 A). Ideal for OEMs and MRO alike, it streamlines control circuit upgrades where reliable AC coil operation and versatile changeover functionality are required.
Engineered for longevity and safety, the HR301C family offers Ui 250 V insulation and 6 kV impulse withstand, backed by a mechanical life of 10,000,000 cycles. Operating from -40 to +85 °C and conforming to IEC/EN 61810, this relay delivers robust performance without LED state indication or mechanical actuator, making it a straightforward, low-complexity choice for industrial automation and general control applications.
Key Benefits
- 110/120VAC coil for straightforward integration into AC control circuits.
- 1 C/O changeover contact provides flexible switching in one device.
- 16 A Ith capability supports robust general-purpose load control.
- High insulation: Ui 250 V and 6 kV impulse withstand.
- Long mechanical life of 10,000,000 cycles reduces maintenance.
- Wide -40 to +85 °C operating range for harsh environments.
- Compatible with HR5XS2... sockets; observe socket’s 10 A maximum.
Technical Specification
- Product type designation: HR301C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Mechanical life: 10000000 cycles
- Operating temperature: -40 to +85 °C
- Storage temperature: -40 to +85 °C
What’s Included
- Lovato HR301CA110 miniature relay
- Product datasheet (download link)
- Protective packaging for transit
Applications
- Control panels and MCCs using 110/120VAC control circuits
- Machine automation I/O and interlocking
- HVAC plant and building services control
- Power distribution signalling and auxiliary switching
- General-purpose industrial switching where 1 C/O is required
Frequently Asked Questions
What control voltage does the Lovato HR301CA110 require?
It is designed for a 110...120VAC control supply.
What is the contact configuration and current rating?
It has 1 changeover (1 C/O) contact with 16 A Ith. When used with HR5XS2... sockets, follow the socket’s 10 A limit.
Can this relay be mounted on HR5XS2... sockets?
Yes, it is designed to fit HR5XS2... sockets. Note the socket’s maximum current is 10 A.
Does the relay include an LED indicator or mechanical actuator?
No, it has no LED state indicator and no mechanical actuator.
What environmental and standards ratings apply?
Operating range is -40 to +85 °C, with Ui 250 V and Uimp 6 kV. It conforms to IEC/EN 61810.
Safety note: Always isolate power before installation or maintenance. Observe the relay and socket current limits, wiring practices, and applicable standards. Installation should be performed by qualified personnel.
| Manufacturer Part Number | HR301CA110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975233306 |
