HR301CA024 - MINIATURE RELAY 1C/O 16A, 24VAC

Why Choose the HR301CA024?

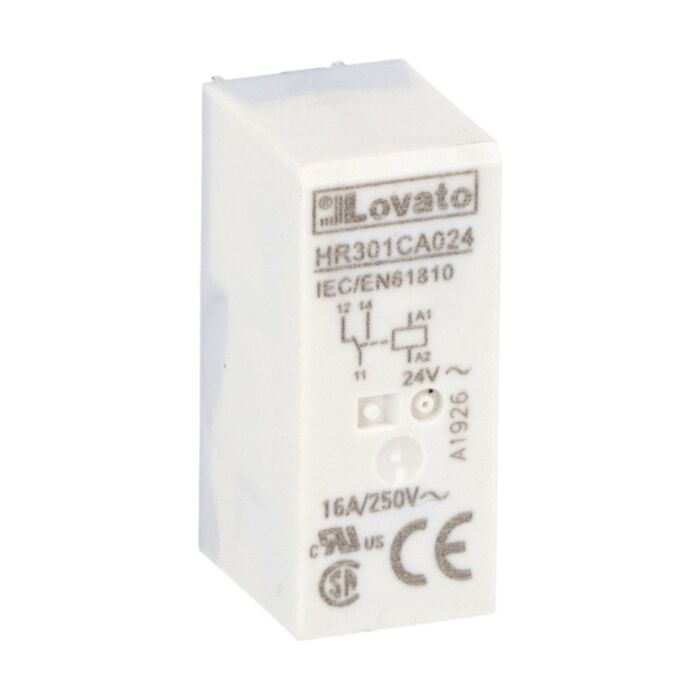

The Lovato HR301CA024 miniature relay delivers dependable switching for control panels and OEM builds. With a 24VAC control coil and 1 C/O contact, the HR301CA024 offers 16 A conventional free air thermal current. Rated insulation voltage is 250 V with 6 kV impulse withstand, ensuring robust dielectric performance. Fitting on socket HR5XS2... (max 10A) adds installation flexibility in compact assemblies.

Built for longevity, this relay achieves 10,000,000 mechanical cycles and operates from -40 to +85 °C for reliable service in demanding environments. It conforms to IEC/EN 61810 and omits an LED state indicator and mechanical actuator for straightforward, robust design. Use where space is tight and performance matters, pairing with suitable sockets and protective devices to match load and installation requirements.

Key Benefits

• 24VAC control coil for straightforward integration into AC control circuits.
• 1 C/O contact with 16 A Ith for versatile switching capacity.
• High dielectric strength: 250 V Ui and 6 kV impulse withstand.
• Long service life with 10,000,000 mechanical operating cycles.
• Wide operating temperature range from -40 to +85 °C.
• Compact miniature relay fits HR5XS2 socket for easy installation.
• Conforms to IEC/EN 61810 for assured compliance and reliability.

Technical Specification

• Product type designation: HR301C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 16 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +85 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR301CA024 miniature relay unit
• Factory packaging for protection
• Documentation available via manufacturer datasheet (online)
• Socket not included; fits HR5XS2... (max 10A)

Applications

• Industrial control panels and automation assemblies
• OEM machinery requiring compact, reliable switching
• HVAC and building management control circuits
• Power distribution auxiliary control and signalling
• General-purpose switching within specified current limits

Safety note: Install and operate within the stated voltage, current and temperature ratings. Use a suitable socket and protective devices, and isolate power before wiring or maintenance.
