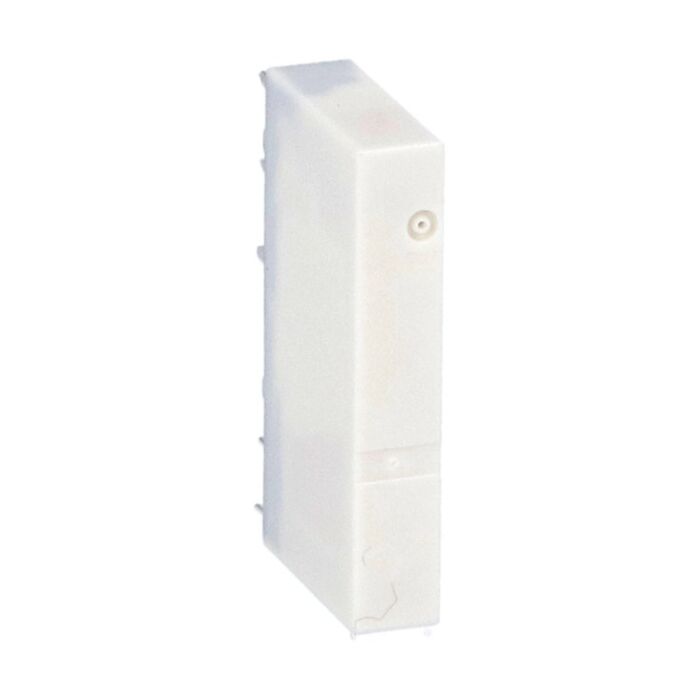

HR101CE024 - SLIM RELAY 1 C/O 6A, 24V DC

Why Choose the HR101CE024?

Designed for compact control panels, the Lovato HR101CE024 slim electromechanical relay delivers dependable switching with a single changeover contact. Rated Ith 6 A and 24 VDC coil control (or 24 VAC/DC when used with HR1XS024/HR1XS024S socket), this versatile relay suits a wide range of control tasks. The robust HR101C platform meets IEC/EN 61810 and offers 250 V Ui and 4 kV impulse withstand for safety and insulation.

Built for long service, this slim relay achieves 10,000,000 mechanical cycles and operates reliably from -40 to +70°C, with storage down to -40 to +80°C. No LED state indicator and no mechanical actuator keep the design simple and robust. Ideal for OEMs and maintenance engineers seeking a compact, standards-compliant relay for consistent performance in industrial automation, building services and general control applications.

Key Benefits

• Slim format suits dense control panels and space-constrained enclosures.
• Single 1 C/O contact for straightforward changeover switching.
• 6 A IEC Ith rating supports common control loads.
• 24 VDC coil; 24 VAC/DC with specified sockets.
• High insulation: Ui 250 V and 4 kV impulse withstand.
• Long mechanical life, up to 10,000,000 cycles.
• Wide operating temperature range, -40 to +70°C.
• Conforms to IEC/EN 61810 for assured reliability.

Technical Specification

• Product type designation: HR101C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 4 kV
• Ith (IEC): 6 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +80 °C

What’s Included

• Lovato HR101CE024 slim electromechanical relay
• Relay module only; sockets sold separately (use HR1XS024 or HR1XS024S if required)
• Basic manufacturer product information

Applications

• Control panels and switchboards with limited space
• PLC and I/O interface isolation
• General machinery control and interlocking circuits
• HVAC and building services control
• Signal switching in low-power industrial circuits

Safety note: Always isolate power before work. Use the correct socket for 24 VAC/DC control and respect the stated voltage, current and temperature limits. Follow relevant standards and local regulations.
