GX4091U - SWITCH 2P GX4091U 2POS FRONT MOUNT 65X65
MPN: GX4091U
Special Price
£44.22
£36.85
Regular Price
£73.70
Why Choose the GX4091U?

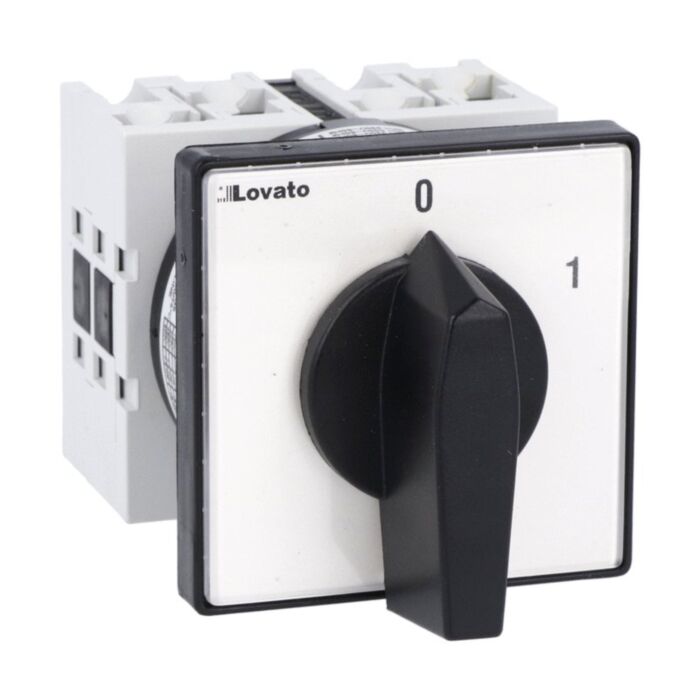

The Lovato GX4091U rotary cam ON/OFF switch delivers reliable 2-pole switching at 40 A in a compact GX series format. Designed for front mounting with a black handle and a 65 x 65 mm plate, the SKU GX4091U suits control panels and equipment where clear, positive switching is essential. Its square-shaped contact block ensures robust performance and straightforward integration into industrial assemblies.
With a 6 kV rated impulse withstand and IP65 frontal protection, the GX40 designation switch withstands harsh environments. Operating from -25 to +55 °C (-40 to +70 °C storage), it meets IEC/EN/BS 60947 and 61058-1, plus UL and CSA requirements. Choose the GX4091U for dependable on-off control in OEM builds, panels and machinery.
Key Benefits
- 2-pole ON/OFF switching to 40 A for reliable circuit control.
- Front mounting with black handle for quick, accessible operation.
- IP65 frontal protection resists dust and water ingress at the panel face.
- 6 kV impulse withstand enhances resilience against transient overvoltages.
- Wide operating temperature range -25 to +55 °C for varied environments.
- Compact 65 x 65 mm plate and square contact block simplify panel layout.
- Conforms to IEC/EN/BS, UL and CSA standards for broad compliance.
- GX series design ensures consistent performance across applications.
Technical Specification
- Product type designation: GX40
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- Lovato GX4091U rotary cam ON/OFF switch assembly
- 65 x 65 mm front plate with black handle (pre-fitted)
- Installation and safety information
Applications
- Control panels requiring 2-pole on/off switching up to 40 A
- Machinery and OEM equipment front-mounted operator control
- Power distribution and auxiliary circuit switching in industrial cabinets
- HVAC, pumping and processing equipment panel interfaces
Frequently Asked Questions
What is the current rating of the GX4091U?
The IEC conventional free air thermal current (Ith) is 40 A.
How is this switch mounted?
It is U-form front mounting with a black handle and a 65 x 65 mm plate.
What ingress protection does the front have?
The frontal degree of protection is IP65 when correctly installed.
What is the operating temperature range?
It operates from -25 to +55 °C, with storage from -40 to +70 °C.
Which standards does the GX4091U comply with?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, IEC/EN/BS 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate all power before work, follow the manufacturer’s instructions, and ensure proper panel sealing to maintain IP65 at the front.
| Manufacturer Part Number | GX4091U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975104309 |
