GX4090U - SWITCH 1P GX4090U 2POS FRONT MOUNT 65X65
MPN: GX4090U
Special Price
£35.70
£29.75
Regular Price
£59.50
Why Choose the GX4090U?

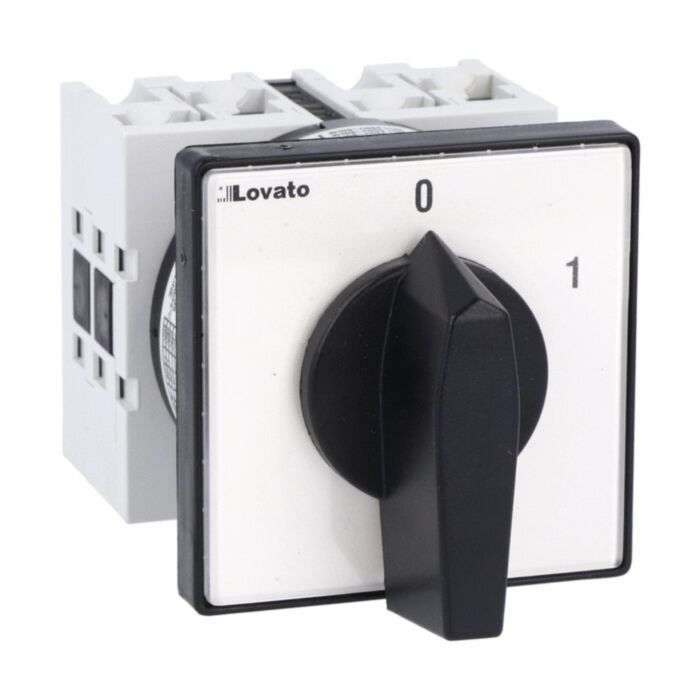

The Lovato GX4090U is a GX series rotary cam ON/OFF switch engineered for dependable 1-pole control at 40 A Ith. Designed for front mounting, it features a black handle and a 65x65 mm front plate for clean panel integration. With a square-shaped contact block and IP65 frontal protection, this compact switch suits space-conscious control panels and straightforward equipment switching.
Rated impulse withstand voltage is 6 kV and the frontal sealing to IP65 helps resist dust and water. The GX4090U operates from -25 to +55 °C and uses Switching diagram 90 for simple ON/OFF 1-pole operation. It conforms to IEC/EN/BS 60947 and 61058-1, plus UL and CSA standards, delivering confidence across industrial control and OEM applications.
Key Benefits
- Simple 1-pole ON/OFF switching using GX Switching diagram 90.
- 40 A Ith rating for robust free-air thermal performance.
- IP65 frontal protection resists dust ingress and water jets.
- U form front mounting with ergonomic black handle.
- 65x65 mm front plate for neat, space-saving panel presentation.
- 6 kV impulse withstand rating enhances transient tolerance.
- Operates reliably from -25 to +55 °C ambient temperatures.
- Conforms to IEC/EN/BS, UL and CSA standards for assurance.
Technical Specification
- Product type designation: GX40
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- GX4090U switch body with integrated front plate and black handle
- Panel mounting fixings
- Installation and safety leaflet
- Manufacturer datasheet (downloadable)
Applications
- Control panels and OEM control cabinets
- Front-panel ON/OFF control for equipment and auxiliaries
- Single-pole switching in industrial and commercial installations
- Operator stations requiring IP65 frontal protection
Frequently Asked Questions
What is the current and pole configuration of the GX4090U?
It is a 1-pole ON/OFF switch with an IEC conventional free air thermal current Ith of 40 A.
How is it mounted and what handle does it include?
Mounting form U indicates front mounting and it includes a black handle for operation.
What environmental protection and temperatures does it support?
The frontal protection is IP65, and the operating temperature range is -25 to +55 °C.
Which standards does this switch conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, IEC/EN/BS 61058-1, UL60947-4-1, and CSA C22.2 n° 14.
What is its impulse withstand voltage and front plate size?
The rated impulse withstand voltage Uimp is 6 kV and the front plate is 65x65 mm.
Safety note: Install and commission only by qualified personnel. Isolate all supplies before work, verify ratings against the application, and follow the manufacturer’s datasheet and applicable standards.
| Manufacturer Part Number | GX4090U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975104293 |
