GX3292O88 - 4P 2 POS. CAM SWITCH GX32 WITH RED YELLO

Why Choose the GX3292O88?

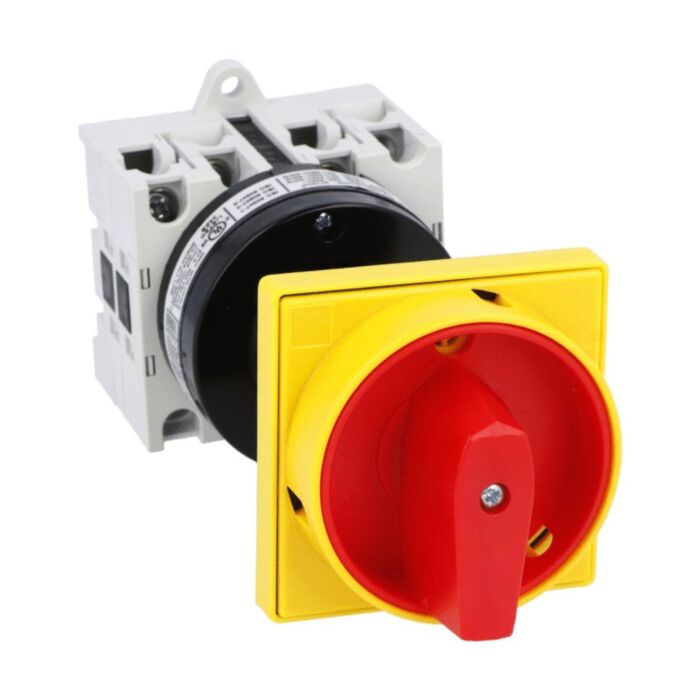

Lovato’s GX3292O88 is a GX series rotary cam ON/OFF switch designed for reliable 4-pole isolation at 32 A Ith. Engineered for rear mounting (O88), it features a red/yellow handle padlockable in 0, door coupling and protection covers, plus a 65X65mm front plate. With an IP65 frontal degree, this square-shaped contact block solution suits demanding panel applications where safe, clear ON/OFF actuation and through-door operation are required.

Rated impulse withstand voltage is 6 kV and the device carries an IEC conventional free air thermal current of 32 A. It operates from -25 to +55 °C, with storage from -40 to +70 °C, and an IP65 frontal degree. Conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1 and 61058-1, plus UL60947-4-1 and CSA C22.2 n° 14; Sustainability certification noted.

Key Benefits

• 4-pole ON/OFF switching for dependable isolation and control.
• 32 A Ith supports demanding circuit requirements.
• Rear mounting O88 with door coupling simplifies through-door operation.
• Red/yellow handle padlockable in 0 aids lockout and safety procedures.
• IP65 frontal protection resists dust and water ingress at the panel face.
• 6 kV impulse withstand voltage enhances surge resilience.
• Operating range -25 to +55 °C suits varied industrial environments.
• Compact 65X65mm front plate for space-conscious panel layouts.

Technical Specification

• Product type designation: GX32
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• GX series rotary cam ON/OFF switch assembly (4-pole, 32 A Ith)
• Red/yellow handle, padlockable in 0 position
• Door coupling components for rear mounting O88
• Protection covers
• 65X65mm front plate

Applications

• Industrial control panels requiring 4-pole ON/OFF isolation
• Through-door switching with rear-mounted operators
• Equipment main ON/OFF control with padlockable 0 position
• Panels needing IP65 frontal protection at the operating interface

Safety note: Install and commission only by qualified personnel. Always isolate the supply before work, and secure the handle in 0 with a padlock during maintenance; observe stated environmental limits and applicable standards.
