GX3291U - SWITCH 2P GX3291U 2POS FRONT MOUNT 65X65
MPN: GX3291U
Special Price
£32.32
£26.93
Regular Price
£53.87
Why Choose the GX3291U?

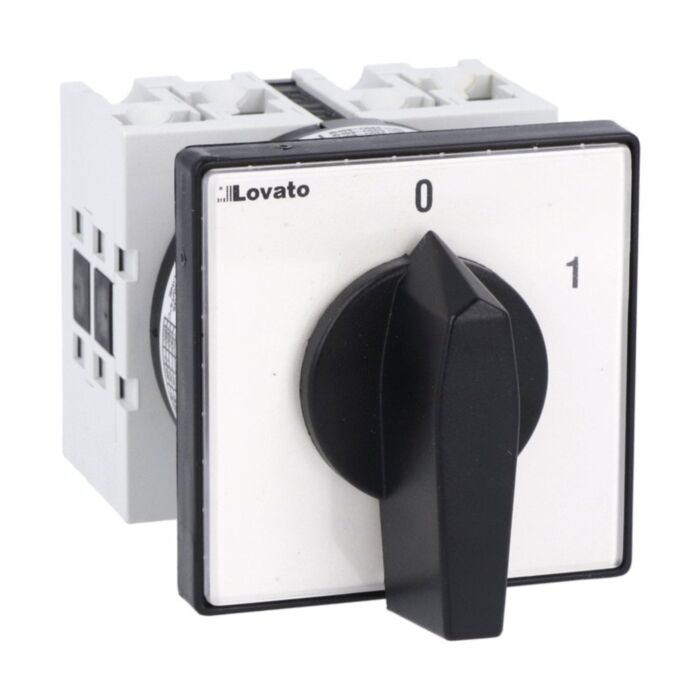

Lovato GX3291U is a GX series rotary cam ON/OFF switch designed for reliable 2-pole control at 32 A. Supplied for front mounting with a black handle and a 65 x 65 mm front plate, it integrates cleanly into control panels. The switching diagram 91 confirms straightforward ON/OFF functionality, with the GX square-shaped contact block delivering durable performance for demanding industrial applications.
Engineered for resilience, the GX3291U offers a rated impulse withstand voltage of 6 kV and IP65 frontal protection when correctly installed. It operates from -25 to +55 °C (storage -40 to +70 °C) and carries the designation GX32, mounting form U. Conformity includes IEC/EN/BS 60947-1, 60947-3, 60947-5-1 and IEC/EN/BS 61058-1, plus UL60947-4-1 and CSA C22.2 n° 14.
Key Benefits
- 2-pole ON/OFF switching with 32 A Ith for dependable control.
- Front mounting (form U) with ergonomic black handle.
- IP65 frontal protection helps resist dust and water ingress.
- 6 kV impulse withstand rating for surge robustness.
- Operates from -25 to +55 °C for varied environments.
- Compact 65 x 65 mm front plate for neat panel fit.
- Compliant with IEC/EN/BS, UL and CSA standards listed.
Technical Specification
- Product type designation: GX32
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- Lovato GX3291U rotary cam ON/OFF switch assembly
- 65 x 65 mm front plate with pre-fitted black handle
- Panel mounting fixings (as supplied by manufacturer)
- Installation leaflet
Applications
- Main ON/OFF control on industrial and commercial equipment
- Panel-mounted power switching for machinery and process systems
- Switching of auxiliary circuits in control cabinets
- Building services and HVAC plant room panels
- Local control for pumps, fans and compressors
Frequently Asked Questions
What is the current rating of the Lovato GX3291U?
It has an IEC conventional free air thermal current Ith of 32 A.
How is the switch mounted and what is the front plate size?
Mounting form U for front mounting with a black handle; front plate is 65 x 65 mm.
What protection rating does the front achieve?
The frontal degree of protection is IP65 when properly installed.
Which standards does this switch conform to?
IEC/EN/BS 60947-1, 60947-3, 60947-5-1, IEC/EN/BS 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
What is the operating temperature range?
The operating temperature is -25 to +55 °C; storage is -40 to +70 °C.
Safety note: Installation and commissioning should be carried out by competent personnel. Always isolate power before work and observe the specified current, IP65 frontal rating and temperature limits.
| Manufacturer Part Number | GX3291U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975104033 |
