GX3290U - SWITCH 1P GX3290U 2POS FRONT MOUNT 65X65

Why Choose the GX3290U?

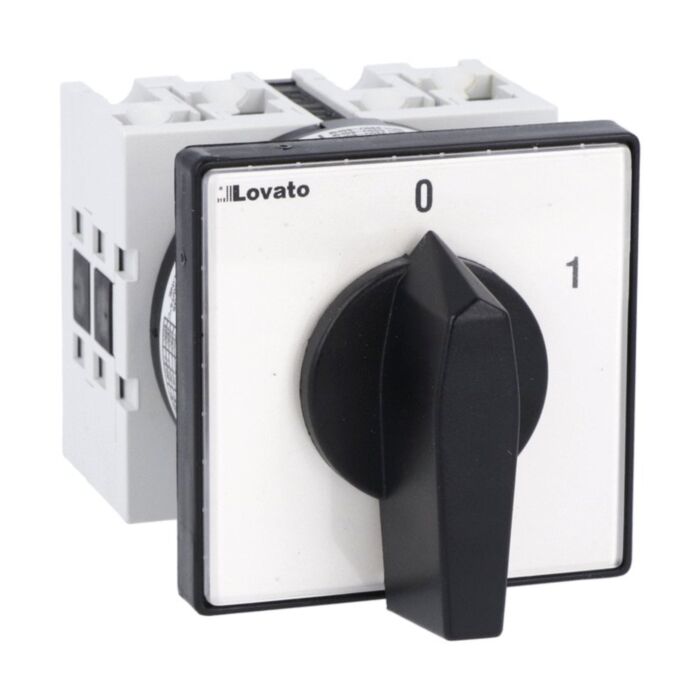

Lovato GX3290U is a rotary cam ON/OFF switch for dependable front-panel control. This 1-pole device provides 32 A conventional free air thermal current (Ith) and follows switching diagram 90 for straightforward isolation. The U mounting form includes a black handle and a 65 x 65 mm front plate, delivering a neat operator interface within panels using the GX square-shaped contact block series.

With IP65 frontal protection, GX32 designation, and 6 kV rated impulse withstand (Uimp), it performs reliably from -25 to +55 °C, with storage from -40 to +70 °C. It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1 and 61058-1, plus UL60947-4-1 and CSA C22.2 n° 14, supporting industrial ON/OFF control in machinery, panels, and general-purpose switching.

Key Benefits

• 32 A Ith rating supports reliable ON/OFF duty in industrial circuits.
• IP65 frontal protection enhances resistance to dust and water at the panel.
• 1-pole, diagram 90 configuration simplifies straightforward isolation and control.
• Front mounting with black handle provides clear, direct operator actuation.
• GX square-shaped contact block aids consistent fit within panel systems.
• 6 kV rated impulse withstand improves resilience against transient overvoltages.
• Operates from -25 to +55 °C, suitable for varied ambient conditions.

Technical Specification

• Product type designation: GX32
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• Lovato GX3290U rotary cam ON/OFF switch, 1-pole, 32 A Ith
• Black front-mount handle with integrated 65 x 65 mm front plate
• Downloadable product datasheet and documentation

Applications

• Machine and process equipment ON/OFF control and isolation
• Control panels and switchboards requiring front-mounted operator switching
• HVAC, pumps, and general industrial start/stop functions
• Maintenance isolation within compliant electrical enclosures

Safety note: Installation and operation must be performed by competent persons. Isolate the supply before work and ensure panel sealing maintains the stated IP65 frontal protection.
