GX3210O88 - 3P 2 POS. CAM SWITCH GX32 WITH RED YELLO
MPN: GX3210O88
Special Price
£53.24
£44.37
Regular Price
£88.75
Why Choose the GX3210O88?

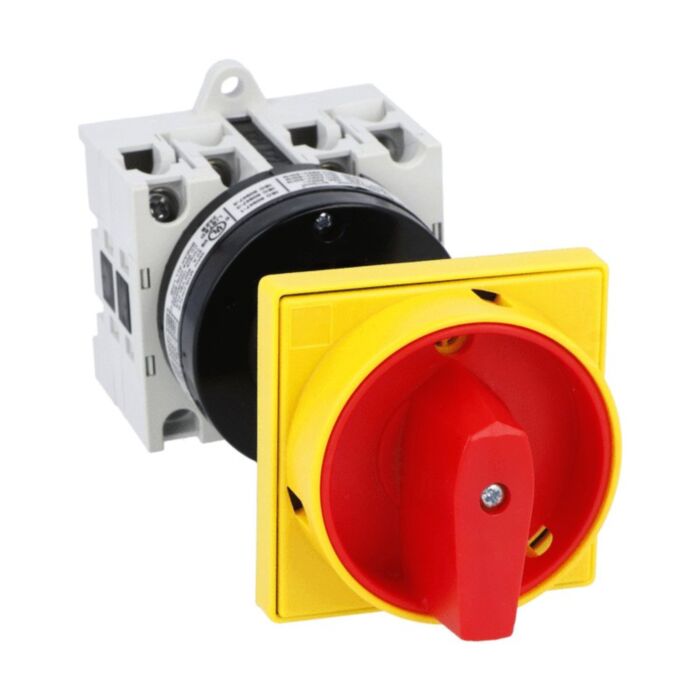

The Lovato GX3210O88 is a GX series rotary cam ON/OFF switch designed for reliable 3‑pole control at 32 A. Featuring the O88 rear mounting format with red/yellow handle padlockable in 0, it provides secure door coupling and protection covers. A 65 x 65 mm front plate and square-shaped contact block ensure a compact, panel-friendly footprint for clear isolation and straightforward operation.
Built to perform in demanding panels, this ON/OFF switch offers IP65 frontal protection, a 6 kV impulse withstand rating and an operating range from −25 to +55 °C. It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1 and 61058-1, plus UL and CSA standards. The GX32 designation reflects the durable architecture, delivering consistent switching performance and dependable isolation in industrial control and machinery environments.
Key Benefits
- 3-pole ON/OFF switching at 32 A for dependable circuit isolation.
- O88 rear mounting with door coupling simplifies robust panel integration.
- Red/yellow handle padlockable in 0 enhances lockout safety and clarity.
- IP65 frontal protection helps resist dust and water ingress on the panel.
- 6 kV impulse withstand voltage improves resilience against surges.
- Operates from -25 to +55 °C for reliable performance in varied conditions.
- 65 x 65 mm front plate and square contact block save panel space.
Technical Specification
- Product type designation: GX32
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- GX series rotary cam ON/OFF switch body (GX32 designation)
- Red/yellow padlockable handle (locks in 0 position)
- Door coupling mechanism
- Protection covers
- 65 x 65 mm front plate
Applications
- Main ON/OFF switching for 3‑pole circuits up to 32 A
- Door-coupled control panels requiring a padlockable 0 position
- Panels needing IP65 frontal protection against dust and water
- Industrial equipment requiring compact 65 x 65 mm front mounting
Frequently Asked Questions
What is the current rating of the GX3210O88?
It has an IEC conventional free air thermal current Ith of 32 A.
How is the switch mounted?
It uses the O88 rear mounting form with door coupling and protection covers.
Is the handle padlockable?
Yes, the red/yellow handle is padlockable in the 0 position.
What environmental protection does the front have?
The frontal degree of protection is IP65.
Which standards does this switch conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and service only with power isolated by qualified personnel, following the listed standards and the manufacturer’s instructions.
| Manufacturer Part Number | GX3210O88 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975101339 |
