GX2092O88 - 4P 2 POS. CAM SWITCH GX20 WITH RED YELLO
MPN: GX2092O88
Special Price
£41.18
£34.32
Regular Price
£68.63
Why Choose the GX2092O88?

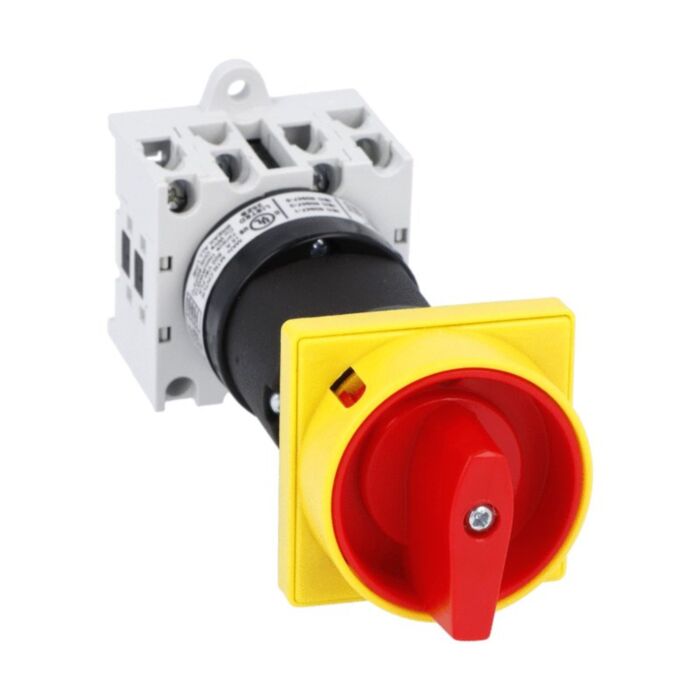

Lovato GX2092O88 rotary cam ON/OFF switch delivers dependable four-pole, 20 A isolation for industrial panels. Designed for rear mounting with door coupling, it features a red/yellow handle padlockable in 0 for safe lock-off. The compact 48x48 mm front plate and GX series square contact block ensure a neat, robust operator interface.
Rated IP65 at the front and conforming to IEC/EN/BS 60947 and UL/CSA standards, the GX20 withstands 6 kV impulses and operates from -25 to +55 °C. Ideal for machinery isolation and control cabinets, this ON/OFF switch offers clear actuation, protection covers, and reliable performance wherever compact, compliant switching is required.
Key Benefits
- Four-pole, 20 A ON/OFF switching for dependable circuit isolation.
- Rear mounting with door coupling streamlines secure integration in control panels.
- Red/yellow handle padlockable in 0 supports lock-off and maintenance safety.
- IP65 frontal protection resists dust and water at the operator interface.
- Compact 48x48 mm front plate saves space on crowded panels.
- GX series square contact block for robust switching performance.
- 6 kV impulse withstand and -25 to +55 °C operating range.
- Conforms to IEC/EN/BS 60947, IEC/EN/BS 61058-1, UL and CSA standards.
Technical Specification
- Product type designation: GX20
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- GX series rotary cam ON/OFF switch, 4 poles, 20 A contact block
- Red/yellow handle, padlockable in 0 position
- Door coupling mechanism for rear mounting
- Protection covers
- 48x48 mm front plate
Applications
- Industrial control panels and switchboards requiring four-pole ON/OFF isolation
- Machinery isolation with padlockable 0 position for maintenance procedures
- HVAC, pump and fan panels using door-coupled rear-mounted operators
- OEM equipment needing a compact 48x48 mm front interface and IP65 front
- Distribution cabinets with 20 A multi-pole ON/OFF switching needs
Frequently Asked Questions
What is the pole configuration and current rating of GX2092O88?
It is a four-pole ON/OFF switch with an IEC conventional free air thermal current Ith of 20 A.
Is the handle padlockable and in which position?
Yes, the red/yellow handle is padlockable in the 0 position for isolation.
What environmental protection does the front offer?
The frontal interface is rated IP65 for dust and water resistance.
What are the operating and storage temperature ranges?
Operating range is -25 to +55 °C; storage range is -40 to +70 °C.
Which standards does this switch conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, IEC/EN/BS 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate the supply and verify lock-off with the handle in 0 before any work. Follow applicable wiring standards and local regulations.
| Manufacturer Part Number | GX2092O88 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975101278 |
