GX1692U11 - 4P 2POS.SWITCH FRN/MNTG HANDLE 22MM

Why Choose the GX1692U11?

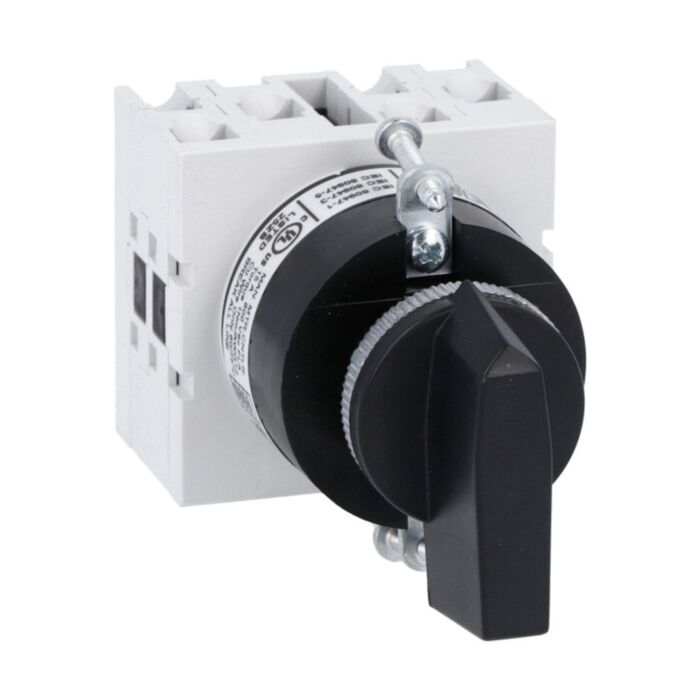

Lovato’s GX1692U11 rotary cam ON/OFF switch delivers dependable 4‑pole control at 16 A Ith. Designed for front mounting (U11) with a black handle and no front plate, it suits Ø22mm panel cut-outs. The GX series square-shaped contact block and product designation GX16 combine robust build with compact footprint for panel builders seeking reliable, standards-compliant switching.

Engineered to IEC/EN/BS 60947 and 61058 standards, the GX1692U11 provides IP65 frontal protection and a 6 kV impulse withstand (Uimp). It operates from -25 to +55 °C and stores between -40 and +70 °C for resilience in varied environments. Ideal where multi-circuit ON/OFF functionality and compact Ø22mm mounting are required in the GX series.

Key Benefits

• 4-pole ON/OFF switching per diagram 92 for multi-circuit control.
• Rated 16 A Ith ensures reliable performance in free air conditions.
• U11 front mounting fits Ø22mm panel holes; no front plate required.
• IP65 frontal protection resists dust and water ingress on the operator face.
• 6 kV impulse withstand (Uimp) enhances dielectric strength and safety.
• Operates from -25 to +55 °C; stores from -40 to +70 °C.
• Conforms to IEC/EN/BS 60947 and 61058 series for assured compliance.

Technical Specification

• Product type designation: GX16
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• GX1692U11 rotary cam ON/OFF switch unit
• Black front-mount handle (U11)
• Panel fixing components for Ø22mm cut-out
• Installation and safety information

Applications

• Panel-mounted ON/OFF control requiring 4-pole switching
• Equipment with Ø22mm operator mounting holes
• Operator interfaces needing IP65 frontal protection
• General industrial control up to 16 A Ith
• Projects aligned to IEC/EN/BS 60947 and 61058 standards

Safety note: Install and commission only by qualified personnel. Isolate power before work, follow applicable IEC/EN/BS standards, and ensure proper panel sealing to maintain the IP65 frontal rating.
