GX1692O88 - 4P 2 POS. CAM SWITCH GX16 WITH RED YELLO
MPN: GX1692O88
Special Price
£36.83
£30.69
Regular Price
£61.38
Why Choose the GX1692O88?

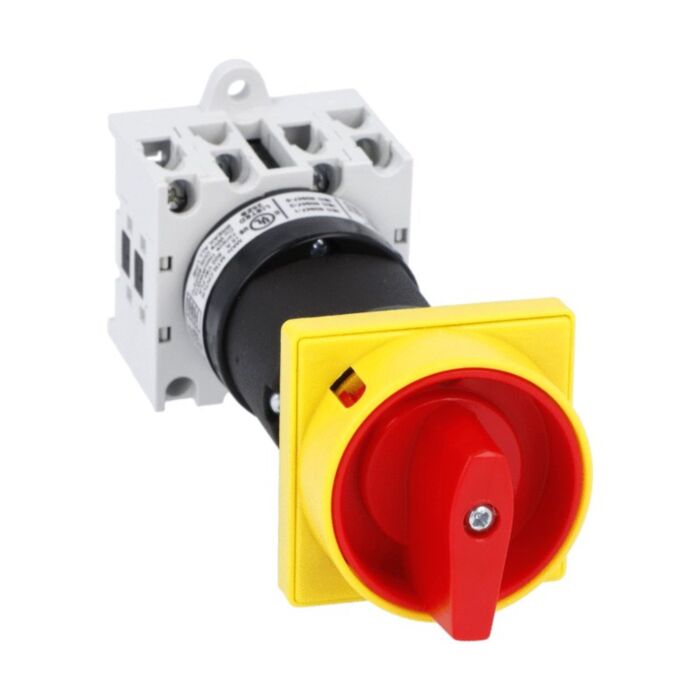

The Lovato GX series rotary cam ON/OFF switch, SKU GX1692O88, delivers reliable 4‑pole 16A isolation and control for compact panels. Designed for rear mounting, it features a red/yellow handle padlockable in the 0 position, door coupling and protection covers, plus a 48x48mm front plate. IP65 frontal sealing and 6 kV impulse withstand support performance in demanding environments.
Built on the GX square-shaped contact block with product designation GX16, this ON/OFF switch meets IEC/EN/BS 60947 and 61058 standards, plus UL and CSA. It operates from -25 to +55 °C and stores to -40 to +70 °C, making it a dependable choice for industrial control panels and machinery where space efficiency and compliance matter.
Key Benefits
- 4-pole 16A ON/OFF switching for dependable circuit isolation
- Rear mounting with door coupling streamlines panel assembly
- Red/yellow handle padlockable in 0 enhances lockout safety
- IP65 frontal protection resists dust and water ingress
- 6 kV impulse withstand for robust surge immunity
- 48x48 mm front plate delivers a neat, compact fascia
- GX square-shaped contact block saves space in enclosures
- Operates reliably from -25 to +55 °C
Technical Specification
- Product type designation: GX16
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- GX rotary cam switch body, 4-pole 16A
- Red/yellow padlockable handle (0 position)
- Door coupling components
- Protection covers
- 48x48 mm front plate
Applications
- Industrial control and automation panels
- Machinery isolation and maintenance lockout points
- OEM equipment and enclosure builds
- General-purpose ON/OFF switching in industrial environments
- Applications requiring IP65 frontal sealing
Frequently Asked Questions
What is the current rating and number of poles?
It is a 4-pole ON/OFF switch with 16 A Ith as per diagram 92.
Is the handle padlockable?
Yes, the red/yellow handle is padlockable in the 0 position.
What is the IP rating of the front?
The frontal degree of protection is IP65.
What temperature range can it operate in?
It operates from -25 to +55 °C and stores from -40 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1 and 61058-1, plus UL and CSA.
Safety note: Installation should be carried out by a qualified person. Isolate power before work, use the padlock feature only in 0, and operate within the stated ratings and environmental limits.
| Manufacturer Part Number | GX1692O88 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975100875 |
