GX1691U11 - 2P 2POS.SWITCH FRN/MNTG HANDLE D22MM

Why Choose the GX1691U11?

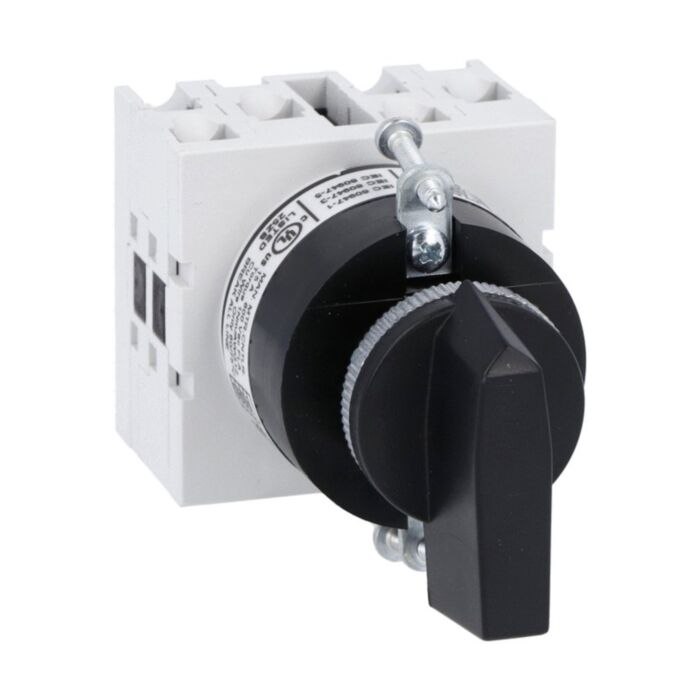

Designed for reliable isolation and control, the Lovato GX1691U11 is a GX series rotary cam ON/OFF switch with 2 poles and a 16A Ith rating. It features U11 front mounting with a black handle, suited to Ø22mm panel fixing without a front plate. The square-shaped contact block ensures robust performance, while IP65 frontal protection and a 6 kV impulse withstand voltage support dependable switching in demanding industrial environments.

Compliant with IEC/EN/BS 60947 and 61058-1 standards, plus UL60947-4-1 and CSA C22.2 n° 14 references, this GX16-designated switch delivers consistent operation across -25 to +55 °C, with storage down to -40 °C and up to +70 °C. The 91 switching diagram provides straightforward ON/OFF control across two poles, ideal for clear circuit isolation. Its compact Ø22mm form factor streamlines panel integration, helping installers specify a proven solution for machinery control and general-purpose switching tasks.

Key Benefits

• 2-pole ON/OFF switching with 16A Ith for dependable isolation.
• U11 front mounting suits Ø22mm panels; no front plate required.
• IP65 frontal protection resists dust and water ingress.
• 6 kV impulse withstand voltage enhances surge robustness.
• Operates reliably from -25 to +55 °C ambient.
• GX square contact block ensures compact, durable construction.
• Conforms to IEC/EN/BS, UL, and CSA standards for assurance.

Technical Specification

• Product type designation: GX16
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• Lovato GX rotary cam ON/OFF switch, 2-pole 16A (GX1691U11)
• Black front-mount handle (U11 configuration)
• Ø22mm panel mounting hardware
• Installation and safety information

Applications

• Industrial control panels requiring 2-pole ON/OFF isolation
• Machinery start/stop and power circuit switching
• HVAC fans, pumps, and small motor loads
• OEM equipment and panel upgrades with Ø22mm cut-outs

Safety note: Install and commission only by qualified personnel. Isolate all power sources before work, confirm IP65 applies to the front face, and follow applicable IEC/EN/BS, UL, and CSA standards.
