GX1690U - 1P 2POS SWITCH GX1690U FRONT MOUNTING 48
MPN: GX1690U
Special Price
£14.00
£11.67
Regular Price
£23.34
Why Choose the GX1690U?

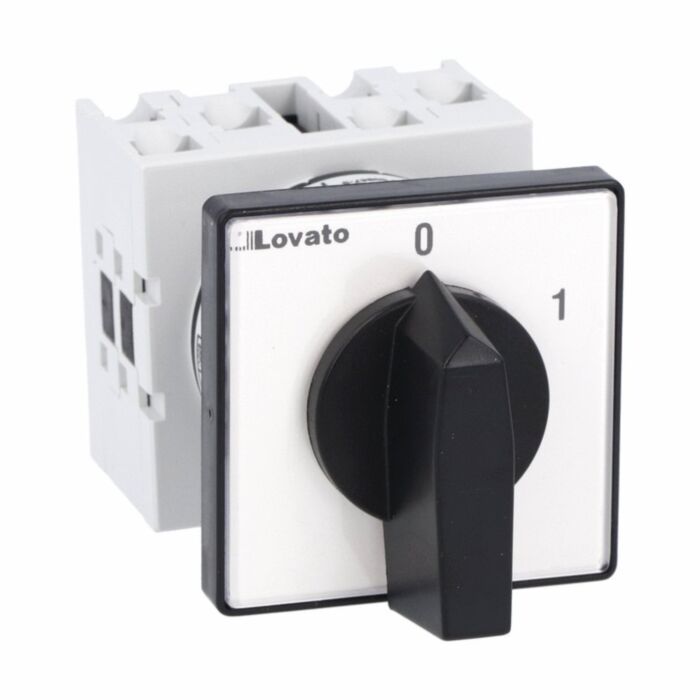

Lovato GX1690U is a rotary cam ON/OFF switch from the GX series, designed for straightforward isolation and control. This 1‑pole, 16A Ith device features U front mounting with a black handle and a compact 48×48mm front plate. Frontal IP65 protection helps resist dust and water ingress in demanding panels, while the square‑shaped GX contact block delivers reliable performance in industrial environments.
Engineered for dependable service, the GX1690U carries a 6kV rated impulse withstand voltage and operates from −25 to +55 °C, with storage down to −40 °C. It conforms to IEC/EN/BS 60947-1/-3/-5-1 and IEC/EN/BS 61058-1, plus UL and CSA, supporting global panels. Light 96g construction aids easy installation and integration for OEMs and panel builders seeking a robust, space‑saving ON/OFF switch solution.
Key Benefits
- 1-pole ON/OFF switching for straightforward circuit isolation.
- 16A Ith rating supports reliable control of standard loads.
- U front mounting with black handle simplifies panel assembly.
- 48×48mm front plate saves space on crowded enclosures.
- IP65 frontal protection resists dust and water splashes.
- Withstands 6 kV impulse for enhanced dielectric strength.
- Certified to IEC/EN/BS 60947 series for assured compliance.
Technical Specification
- Product type designation: GX16
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 96 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- Lovato GX1690U rotary cam ON/OFF switch, assembled with black handle
- 48 x 48 mm front plate integrated on operator
- Manufacturer datasheet (PDF) available via product page
- Original packaging
Applications
- Industrial control panels requiring simple ON/OFF isolation
- Machine start/stop and power switching duties
- HVAC, pumps, and fans local control stations
- Distribution boards and OEM equipment assemblies
Frequently Asked Questions
Is the GX1690U a 1-pole ON/OFF switch?
Yes. It follows switching diagram 90: ON/OFF switch 1 pole.
What is the current rating of this switch?
The IEC conventional free air thermal current Ith is 16 A.
What ingress protection does the front have?
The frontal degree of protection is IP65 when properly installed.
How is the switch mounted and operated?
It is for U front mounting and supplied with a black handle.
Which standards does the GX1690U conform to?
IEC/EN/BS 60947-1/-3/-5-1, IEC/EN/BS 61058-1, UL60947-4-1, and CSA C22.2 n° 14.
Safety note: Installation and wiring should be carried out by qualified personnel. Isolate power before work, use within the stated ratings and environmental limits, and follow applicable IEC/EN/BS, UL and CSA standards.
| Manufacturer Part Number | GX1690U |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975100783 |
