GX1610U25 - 3P SWITCH GX1610U25 2POS FRONT MOUNT PAD
MPN: GX1610U25
Special Price
£23.14
£19.28
Regular Price
£38.57
Why Choose the GX1610U25?

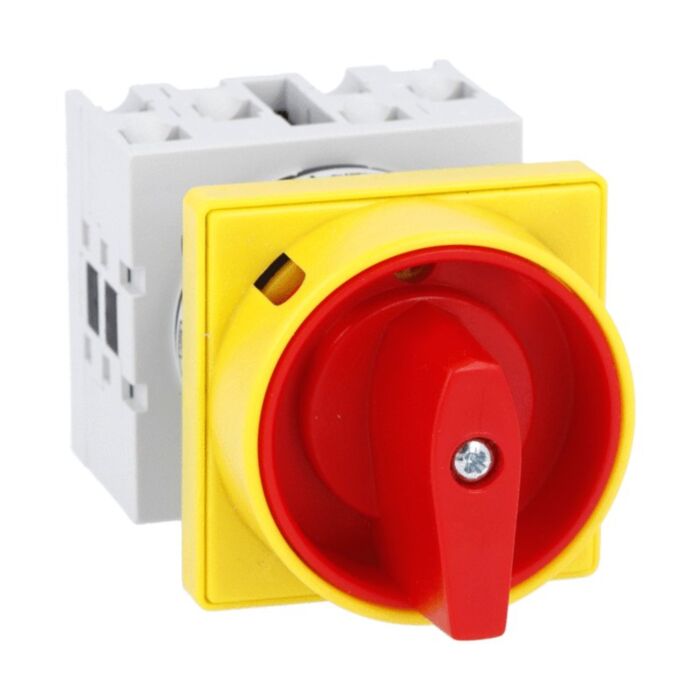

The Lovato GX1610U25 is a GX series rotary cam ON/OFF switch designed for reliable isolation in industrial panels. This 3‑pole, 16A device features U25 front mounting with a red/yellow padlockable handle in 0 and protection covers, plus a compact 48×48 mm front plate. With IP65 frontal protection and a square-shaped contact block design, it delivers robust performance and straightforward integration for OEMs and maintenance teams.
Product type designation GX16, the switch withstands 6 kV impulse voltage and operates from −25 to +55 °C (storage −40 to +70 °C). It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, 61058-1, UL60947-4-1 and CSA C22.2 n° 14. Ideal for machine ON/OFF control, isolation, and service lockout, the GX series provides dependable switching in harsh, space‑constrained enclosures.
Key Benefits
- 3‑pole, 16A ON/OFF switching for dependable isolation
- IP65 frontal protection guards against dust and water ingress
- U25 front mounting simplifies panel installation
- Red/yellow handle padlockable in 0 enhances safety compliance
- Compact 48×48 mm front plate saves valuable panel space
- 6 kV impulse withstand supports robust industrial environments
- Certified to IEC/EN/BS, UL and CSA standards for peace of mind
Technical Specification
- Product type designation: GX16
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- Lovato GX1610U25 rotary cam ON/OFF switch (3‑pole, 16A)
- Red/yellow padlockable handle with protection covers
- 48×48 mm front plate assembly
- Documentation: manufacturer datasheet (downloadable)
Applications
- Main ON/OFF control and isolation for machinery and equipment
- Panel builders requiring compact, IP65 frontal switching
- Maintenance lockout in industrial control circuits
- HVAC and pump control panels needing 3‑pole isolation
- OEM switchboards using GX series square contact blocks
Frequently Asked Questions
What is the current rating and number of poles?
It is rated at 16 A and provides 3‑pole ON/OFF switching (diagram 10).
Is the handle padlockable for safety?
Yes, the red/yellow handle is padlockable in position 0 and includes protection covers.
What ingress protection does it offer?
The frontal degree of protection is IP65.
What are the temperature limits?
Operating range is −25 to +55 °C; storage range is −40 to +70 °C.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, IEC/EN/BS 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before work, use within the stated ratings, and apply appropriate lockout procedures in accordance with local regulations.
| Manufacturer Part Number | GX1610U25 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975100455 |
