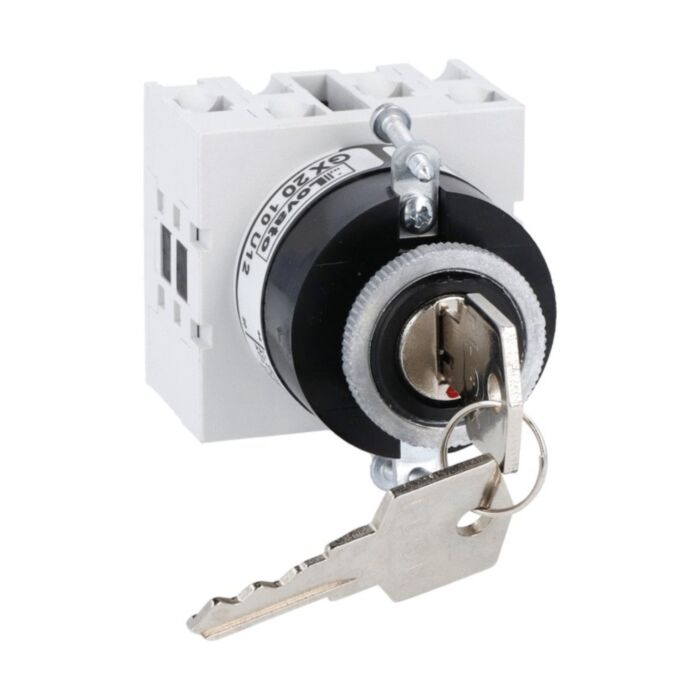

GX1610U12 - 3P 2POS.SWITCH FRN/MNTG W/KEY 22MM
MPN: GX1610U12
Special Price
£34.32
£28.60
Regular Price
£57.19
Why Choose the GX1610U12?
Designed for robust panel control, the Lovato GX1610U12 rotary cam ON/OFF switch delivers dependable 3-pole switching at 16 A Ith. The SKU GX1610U12 features U12 front mounting without a front plate, key operation, and Ø22 mm fixing for fast integration. Its GX series square-shaped contact block and IP65 frontal protection make it a reliable choice for demanding industrial environments requiring clear, positive ON/OFF actuation.
Built to recognised standards, this GX16 designation device offers 6 kV rated impulse withstand voltage and operates from -25 to +55 °C, with storage down to -40 °C. Conformity includes IEC/EN/BS 60947 series and 61058-1, plus UL and CSA references. Key-operated actuation supports controlled access, while the square contact block format simplifies compact layouts across control panels and equipment assemblies.
Key Benefits
- 3-pole ON/OFF switching for clear circuit isolation.
- 16 A Ith rating for reliable general-purpose control.
- U12 front mounting without front plate for swift installation.
- Key operation supports restricted access to switching.
- Ø22 mm panel fixing fits standard industrial cut-outs.
- IP65 frontal protection resists dust and water ingress.
- 6 kV impulse withstand enhances surge robustness.
- Wide -25 to +55 °C operating temperature range.
Technical Specification
- Product type designation: GX16
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- GX1610U12 rotary cam ON/OFF switch (3-pole, 16A Ith)
- Manufacturer documentation (online datasheet)
Applications
- Industrial control panels requiring secure ON/OFF actuation
- 3-phase equipment main switching and isolation tasks
- Front-mounted devices using Ø22 mm cut-outs
- Panels needing IP65 frontal protection in demanding areas
- Equipment where key-operated switching is preferred
Frequently Asked Questions
What is the switching configuration of the GX1610U12?
It follows Switching Diagram 10, providing ON/OFF switching with 3 poles.
What mounting format and hole size does it require?
U12 front mounting without front plate, with key operation, for Ø22 mm fixing.
What front protection rating does this switch offer?
The frontal degree of protection is IP65 when correctly installed.
Which standards does the GX1610U12 conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, IEC/EN/BS 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
What is the operating temperature range?
It operates from -25 to +55 °C, with storage from -40 to +70 °C.
Safety note: Install and commission only by qualified personnel following applicable IEC/EN/BS 60947 requirements. Isolate power before work and ensure correct sealing to maintain IP65 frontal protection.
| Manufacturer Part Number | GX1610U12 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975100448 |
