GX1610U11 - 3P 2POS.SWITCH FRN/MNTG HANDLE 22MM
MPN: GX1610U11
Special Price
£26.66
£22.22
Regular Price
£44.44
Why Choose the GX1610U11?

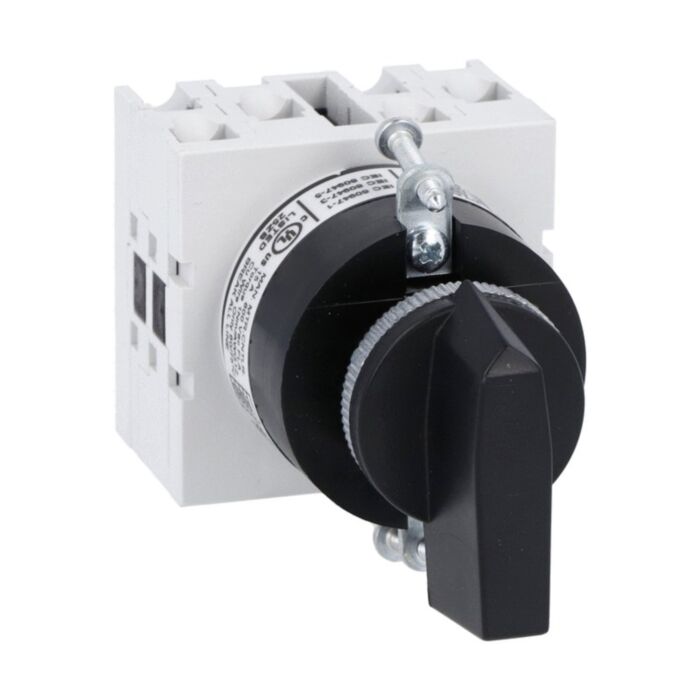

Lovato’s GX rotary cam ON/OFF switch, SKU GX1610U11, delivers dependable 3‑pole switching at 16A Ith for compact control panels. Designed for front mounting in a Ø22mm panel hole, it features a black handle and the U11 configuration without a front plate. With an IP65 frontal degree of protection and a 6 kV rated impulse withstand voltage, it suits demanding industrial environments and consistent operator interfaces.
Part of the GX series with a square-shaped contact block and product designation GX16, this switch operates between -25 to +55 °C and stores from -40 to +70 °C. It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1 and IEC/EN/BS 61058-1, with UL and CSA references, supporting global panel builds. The clear switching diagram 10 specifies ON/OFF control across three poles.
Key Benefits
- 3-pole ON/OFF switching with 16A Ith for reliable control
- Front mounting U11 configuration simplifies Ø22mm panel integration
- Black handle and compact GX form support consistent operator layout
- IP65 frontal protection resists dust and water ingress on the front
- 6 kV impulse withstand enhances tolerance to switching surges
- Operates from -25 to +55 °C for varied industrial environments
- Conforms to IEC/EN/BS, UL and CSA standards for assured compliance
Technical Specification
- Product type designation: GX16
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- GX rotary cam switch unit with black handle (U11 front mounting)
- Supplied without front plate; for Ø22mm panel hole
- Downloadable product datasheet
Applications
- General ON/OFF control in industrial and commercial panels
- Front-of-panel switching for control stations and operator panels
- 3-pole circuit switching within control cabinets and OEM builds
- Equipment requiring IP65 frontal protection at the control interface
Frequently Asked Questions
What panel cut-out is required for this switch?
It is designed for front mounting into a Ø22mm panel hole.
Does GX1610U11 include a front plate?
No. The U11 mounting form is without a front plate.
What current can it handle?
The IEC conventional free air thermal current Ith is 16 A.
What ingress protection does the front have?
The frontal degree of protection is IP65 when correctly mounted.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1, 60947-3, 60947-5-1, IEC/EN/BS 61058-1, plus UL and CSA references.
Safety note: Installation must be carried out by qualified personnel. Isolate power before work, respect the stated ratings and temperatures, maintain IP65 frontal sealing, and comply with applicable standards.
| Manufacturer Part Number | GX1610U11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975100431 |
