GX1610O88 - 3P 2 POS. CAM SWITCH GX16 WITH RED YELLO
MPN: GX1610O88
Special Price
£34.56
£28.80
Regular Price
£57.61
Why Choose the GX1610O88?

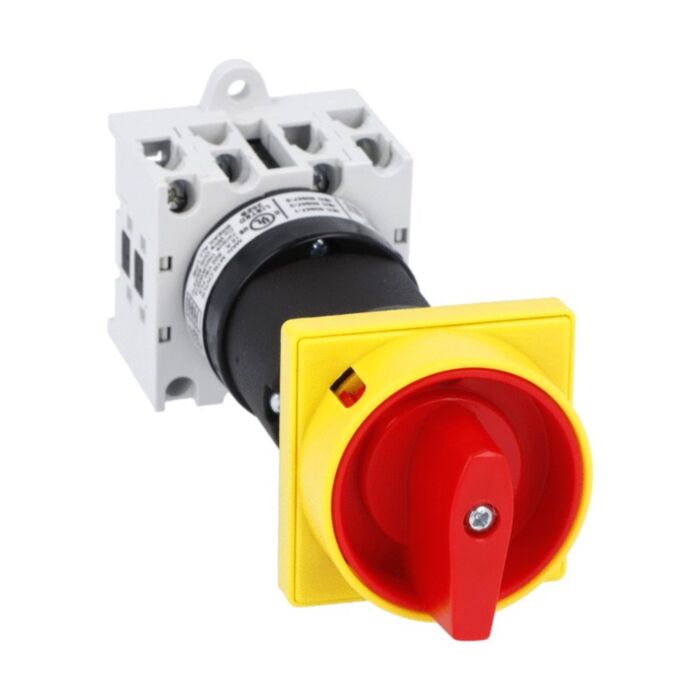

Lovato GX1610O88 GX16 rotary cam ON/OFF switch provides dependable 3‑pole, 16 A switching in a compact footprint. Rear mounting with door coupling streamlines panel assembly, while the red/yellow handle is padlockable in 0 for secure lock-off. Supplied with protection covers and a 48x48 mm front plate, it is ideal for clear, space-saving operator interfaces.
Engineered in the GX series with a square-shaped contact block, this ON/OFF switch offers IP65 frontal protection and a 6 kV rated impulse withstand voltage. It operates from -25 to +55 °C, stores from -40 to +70 °C, and conforms to IEC/EN/BS 60947-1/-3/-5-1, IEC/EN/BS 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
Key Benefits
- 3-pole, 16 A Ith ON/OFF switching for reliable circuit control.
- Rear mounting with door coupling speeds installation in panels.
- Red/yellow handle padlockable in 0 for safe lock-off.
- IP65 frontal protection against dust and water jets.
- Compact 48x48 mm front plate saves valuable door space.
- GX series square-shaped contact block design for durable performance.
- 6 kV impulse withstand voltage for transient overvoltage resilience.
- Wide operating temperature range from -25 to +55 °C.
Technical Specification
- Product type designation: GX16
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- IP degree (frontal): IP65
What’s Included
- GX16 rotary cam ON/OFF switch assembly, 3 poles, 16 A Ith
- Red/yellow padlockable handle (0 position)
- 48x48 mm front plate
- Door coupling components (rear mounting O88)
- Protection covers
- Basic installation instructions
Applications
- Industrial control panels and machinery enclosures
- General equipment ON/OFF control for 3-pole circuits up to 16 A Ith
- Switchboards requiring compact 48x48 mm operator interfaces
- Panels needing IP65 frontal protection at the operator
- Building services and HVAC control cabinets
Frequently Asked Questions
What is the IP rating at the operator?
The frontal degree of protection is IP65.
Can the handle be padlocked in the OFF position?
Yes. The red/yellow handle is padlockable in 0 for secure lock-off.
What are the operating and storage temperature ranges?
Operating range is -25 to +55 °C; storage is -40 to +70 °C.
Which standards does the GX1610O88 conform to?
It conforms to IEC/EN/BS 60947-1/-3/-5-1, IEC/EN/BS 61058-1, UL60947-4-1 and CSA C22.2 n° 14.
What is the rated impulse withstand voltage (Uimp)?
The rated impulse withstand voltage is 6 kV.
Safety note: Install and service only by qualified personnel. Isolate all power before work, use the padlock facility only in the 0 position, and observe the IP65 frontal rating and temperature limits.
| Manufacturer Part Number | GX1610O88 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975100394 |
