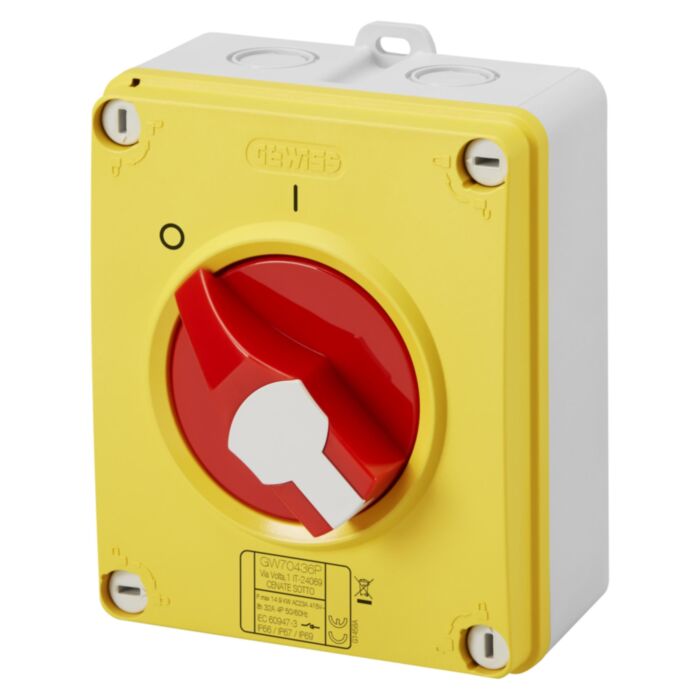

GW70488P Gewiss Enclosed Isolator 25A 4P R/Y IP66/67/69
MPN: GW70488P
Special Price
£41.32
£34.43
Regular Price
£55.08
Why Choose the Gewiss GW70488P Emergency Rotary Isolator Switch?
The Gewiss GW70488P is a high-performance 160 A, 4 pole emergency rotary isolator switch from the Gewiss 70 RT HP range, supplied as a complete enclosed switch disconnector designed to provide safe, manual isolation of electrical circuits. It is ideal for industrial and commercial installations requiring robust disconnection, maintenance isolation and clear emergency shutdown capability.
If you are searching for GW70488P as a replacement, this is the correct like for like part code, matching the original unit in operating method, protection ratings and enclosure format.
With a padlockable red rotary handle, high ingress protection and heavy duty construction, the GW70488P combines clear ON OFF operation with durability in demanding environments including washdown and exposed service areas.
Product Code: Gewiss GW70488P
Key Benefits
- 160 A switch disconnector for dependable isolation of high current circuits.
- 4 pole configuration for three phase plus neutral disconnection.
- Emergency rotary handle with clear ON OFF indication.
- Padlockable OFF position to support safe lockout procedures.
- IP66 IP67 IP69 ingress protection for harsh and washdown environments.
- IK08 impact resistance for industrial durability.
- Double insulation for enhanced protection against indirect contact.
Technical Specifications
- Manufacturer: Gewiss
- Series: 70 RT HP
- Product type: Emergency rotary isolator switch (enclosed)
- Model: GW70488P
- Rated current: 160 A
- Poles: 4P
- Rated insulation voltage Ui: 690 V AC
- Utilisation category: AC-21A 160 A at 415 V, AC-22A 160 A at 415 V, AC-23A 160 A at 415 V
- Conditional short circuit current Icc: 6 kA at 415 V
- Ingress protection: IP66 IP67 IP69
- Mechanical resistance: IK08
- Protection against indirect contact: Double insulation
- Recommended cable section: 6 to 35 mm²
- Operating temperature: minus 25 to plus 60 °C
- Knob colour: Red
- Lockable: Yes, padlockable OFF position (max. 3 locks)
- Cable entries: Top 2 x M32/M40 knock outs; bottom 2 x M32/M40 knock outs
- Accessory option: Up to 2 auxiliary contacts (1 per side)
Compatibility
Designed to integrate into existing Gewiss 70 RT HP installations using the same operating method and enclosure format. Supports standard gland entry arrangements and optional auxiliary contacts for straightforward like for like replacement work.
Applications
- High current emergency isolation on industrial machinery and plant equipment
- Local isolation points for three phase distribution and control panels
- Washdown areas requiring IP66 IP67 IP69 protection
- Maintenance lockout and safe isolation procedures
- Replacement of existing GW70488P units with minimal downtime
For installations requiring a different current rating or pole configuration, the Gewiss 70 RT HP range includes alternative enclosed rotary isolators to suit your application.
Supplied as a new, unused genuine Gewiss product suitable for professional electrical installations.
Frequently Asked Questions
Is this the correct replacement for a Gewiss GW70488P?
Yes. This is the genuine Gewiss GW70488P part code, typically used as a like for like replacement where the original part is required.
What does 4 pole mean on the GW70488P?
4 pole means the switch disconnects three phase conductors plus neutral for complete isolation.
Can the handle be padlocked for lockout?
Yes. It is padlockable in the OFF position with up to 3 padlocks to support safe lockout procedures.
Is the isolator suitable for washdown environments?
Yes. With IP66 IP67 IP69 protection, it is designed to withstand demanding conditions involving dust, water jets and washdowns.
What cable sizes can be terminated?
The recommended cable section range is 6 to 35 mm², depending on conductor type and installation practice.
Common Search Terms
GW70488P, Gewiss GW70488P, GW70488P isolator, GW70488P rotary isolator, Gewiss 160A 4P isolator, GW70488P IP66, GW70488P IP67, GW70488P IP69, GW70488P replacement, 70 RT HP GW70488P.
| Manufacturer Part Number | GW70488P |
|---|---|
| Amperage | 25A |
| Number of Poles | 4 Pole |
| Manufacturer | Gewiss |
| Mount Type | In Enclosure |
| Barcode | 8011564751453 |
Write Your Own Review
Gewiss 70 RT HP Range Rotary Isolator Switches
The Gewiss GW70 range of rotary surface mount isolator has an amperage range of 16A to 160A, the range has been designed to simplify installation and reducing the wiring time whilst offering the highest level of protection. The GW70's rugged dsign will ensure circuits can be isolated in even the most difficult condiions. The 70 RT has been desinged and built using only high performance materials and comes in both insulating material and metal, with controla and emergency versions. Launched in 2018 these isolators have been desinged and buiolt with modern applications in mind and have revolutionised the industy, leaving the competition behind
The isolators are rated at IP66/IP67 and IP69, with an IK rating of IK08, they are lockable with 4 quater tern lid screws to enable easy installation.
