GW44206 Gewiss 150x110x70mm Electrical Enclosure/Panel Box IP56 Rated
- Buy 5 for £3.12 £2.60 each and save 50%
- Buy 10 for £3.00 £2.50 each and save 52%
- Buy 50 for £2.87 £2.39 each and save 54%

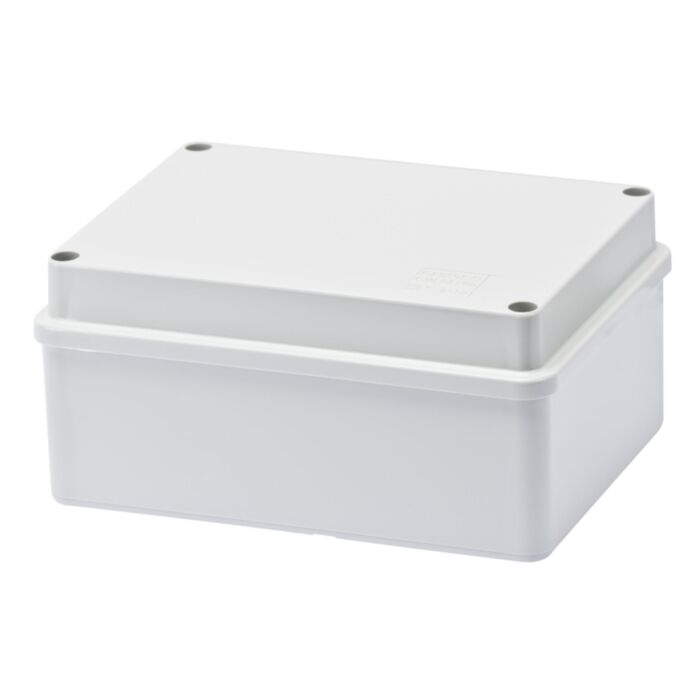

As part of the stocked electrical enclosures here at LED Controls the Gewiss plastic junction box GW44206 has a smooth, plane four-point screw lid with the internal dimensions of 150mm long, 110mm wide and 70mm deep.
The screws securing the lid to the body of the junction box are easily accessible with a flat head screwdriver to make securing it a quick and easy process.
It has smooth plane walls on the inside and out except for the back of the enclosure which features pre-manufactured fitting points where a galvanized metal backing plate can be easily fitted.
These junction boxes are in the grey color code RAL7035 and an IP rating of IP56 so they are waterproof up to a certain degree and can be fitted outdoors for long periods of time.
The mounting points for this enclosure have been manufactured in the form of four small holes approximately 8mm in diameter near to each corner of the external back face of the junction box so these would need to be pushed out with a screwdriver so it can be mounted at these four points.
The lid of the junction box is stamped with the part number and IP rating.
|Product Image||For Illustration Purposes Only|
|Product Lead Time||In Stock Delivery next working day|
|Links||More information on this product from Gewiss|
The Gewiss 44 range of junction boxes is manufatured in technoploymer GWT 650 degree halogen free material, which makes them perfect for a variety of conditions in industrial and commercial applications. With an IP rating of IP56 ensuring the enclosures can be used in most locations.
LED Controls Ltd stock a large range of Plastic junction boxes to suit every application, if you dont see a size or style you are looking for please get in touch with our sales team.

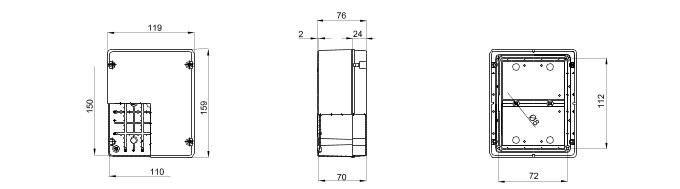

Technical details of the GW44 range are below
