GLC0200C1UL - 3P CHANGEOVER SWITCH 200A AC21 UL VERSION

Why Choose the GLC0200C1UL?

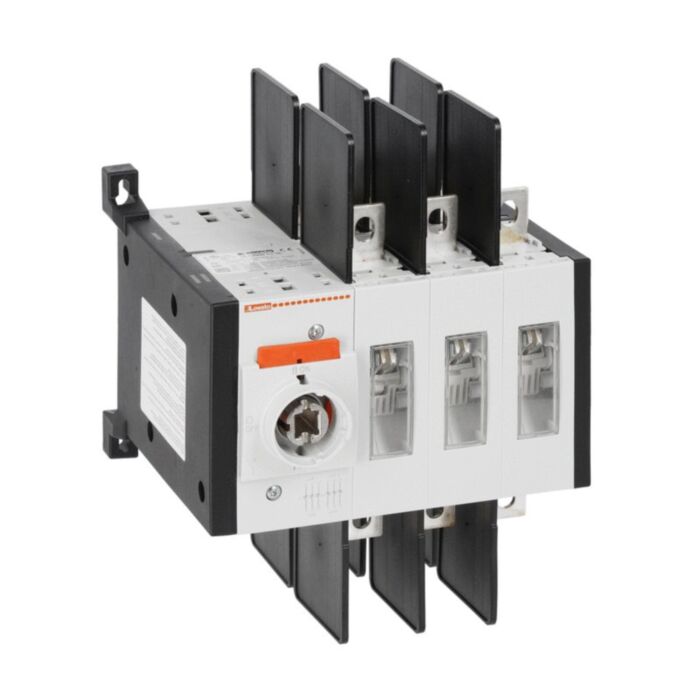

The Lovato GLC0200C1UL is a three-pole AC changeover switch engineered for dependable source transfer in industrial and commercial installations. Rated Ith 200 A and built to UL1008, this changeover switch mounts with screw-on plate installation for straightforward panel integration. It enables efficient switching between supplies while supporting continuity and safety for distribution boards, generator changeover, and other critical services.

With Ui 1000 V and Uimp 12 kV, plus AC23A operational power of 110 kW at 400 V and 200 kW at 690 V, the GLC0200C1UL handles demanding AC duties. It offers a conditional short-circuit current of 100 kA, mechanical life of 20,000 cycles, and accepts 70 to 85 mm² conductors, with 15 to 22 Nm terminal torque for secure terminations across -25 to +55 °C, up to 3000 m altitude.

Key Benefits

• UL1008 compliant for assured changeover performance and safety.
• 200 A Ith rating for high-current AC distribution.
• Three-pole design for three-phase source transfer applications.
• High Ui 1000 V and Uimp 12 kV insulation strength.
• AC23A power to 110 kW at 400 V, 200 kW at 690 V.
• 100 kA conditional short-circuit rating for system resilience.
• Screw-on plate mounting for quick panel integration.

Technical Specification

• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 200 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 110 kW
• Rated operational power AC23A 690 V: 200 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: J/200
• Making capacity AC23A 400 V: 2000 A
• Breaking capacity AC23A 400 V: 1600 A
• Mechanical life: 20000 cycles
• Terminal tightening torque: 15 to 22 Nm
• Conductor section (IEC): 70 to 85 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m

What’s Included

• Lovato GLC0200C1UL three-pole changeover switch
• Manufacturer data sheet (download)
• Basic mounting and safety instructions

Applications

• Mains-to-generator changeover in three-phase AC systems
• Industrial distribution boards and switchboards
• Motor and mixed-load switching within AC23A utilisation categories
• Critical services requiring reliable source transfer

Safety note: Install and commission only by qualified personnel with power isolated. Use appropriate short-circuit protection (J/200 fuse) and follow IEC/EN 60947 requirements and local regulations.
