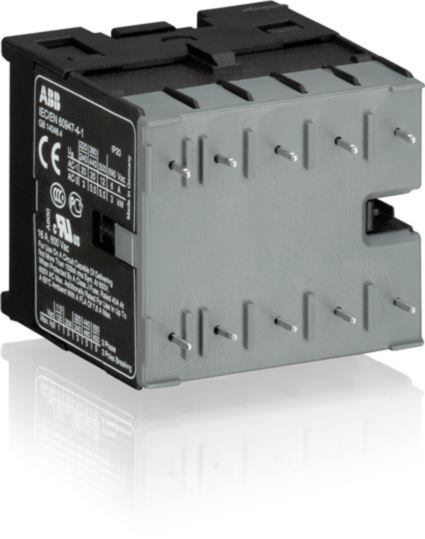

GJL1213009R0104 bc6-30-10-p-04 110vdc mini ABB Contactor 4kw

Why Choose the ABB BC6-30-10-P-04 Mini Contactor?

The ABB BC6-30-10-P-04, part number GJL1213009R0104, is a compact and highly reliable 3-pole mini contactor with solder pin PCB connections engineered for switching motors, control circuits and industrial electrical loads in applications where dependable performance and compact PCB integration are essential. As part of the trusted ABB BC6 mini contactor series, it delivers stable switching performance and long operational life for industrial automation, OEM machinery and electronic control assemblies.

This compact contactor features 3 normally open main contacts and 1 normally open auxiliary contact, making it ideal for motor control, signalling and automation duties. Its solder pin PCB connection design enables direct printed circuit board integration for compact control systems while maintaining ABB’s proven electrical reliability and durable industrial construction.

With a 110-125 V DC control coil and support for switching three-phase motors up to 4 kW AC-3 at 400 V, the ABB BC6-30-10-P-04 is widely used in PLC-controlled systems, HVAC equipment, industrial automation and compact electrical control cabinets requiring efficient and space-saving PCB-mounted switching technology.

Key Advantages

• Compact PCB-mount mini contactor for industrial automation systems.
• 3 NO main contacts with 1 NO auxiliary contact.
• 110-125 V DC control coil suitable for industrial DC control circuits.
• Supports motor switching up to 4 kW AC-3.
• Solder pin terminals allow direct PCB integration.
• Noiseless and hum-free coil operation.
• Reliable ABB contact technology for long operational life.

Key Features

• ABB BC6 mini contactor series.
• 3-pole contactor configuration.
• 3 normally open main contacts.
• 1 normally open auxiliary contact.
• 110-125 V DC control voltage.
• 12 A AC-1 rated operational current.
• 4 kW AC-3 motor switching capability at 400 V.
• Solder pin PCB terminal connections.
• PCB and DIN rail mounting compatible.
• Compact industrial switching design.

Technical Specifications

• Manufacturer: ABB
• Series: BC6 Mini Contactors
• Model: BC6-30-10-P-04
• Part number: GJL1213009R0104
• Product type: Mini contactor
• Main contacts: 3 NO
• Auxiliary contacts: 1 NO
• Number of poles: 3P
• Rated operational current AC-1: 12 A
• Rated operational current AC-3: 9 A at 400 V
• Rated operational power AC-3: 4 kW at 400 V
• Control voltage: 110-125 V DC
• Rated insulation voltage: 690 V
• Impulse withstand voltage: 6 kV
• Terminal type: Solder pin PCB connections
• Mounting type: PCB / DIN rail mounting
• Protection rating: IP20
• Mechanical durability: 10 million operations
• Operating temperature: -25 °C to +55 °C
• Dimensions (W × H × D): approx. 47.5 × 45.2 × 47.7 mm
• Weight: approx. 0.17 kg
• Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1

Reliable Switching for Industrial Control Systems

The ABB BC6-30-10-P-04 mini contactor is engineered to provide dependable switching performance for motors and industrial loads while maintaining compact dimensions suitable for PCB-mounted automation systems and electrical control assemblies.

ABB mini contactors are trusted by panel builders, automation engineers and OEM manufacturers because of their reliable contact system, durable construction and compact installation footprint. The solder pin PCB terminal configuration enables efficient integration into industrial electronic assemblies and control boards.

Typical Applications

• Industrial motor control systems.
• PCB-mounted automation equipment.
• PLC-controlled machinery.
• Industrial signalling and switching circuits.
• OEM machinery and manufacturing systems.
• Compact electrical control assemblies.

Trusted by Automation Engineers Worldwide

ABB mini contactors are trusted globally for compact design, dependable switching performance and reliable PCB integration in industrial automation and machinery applications.
