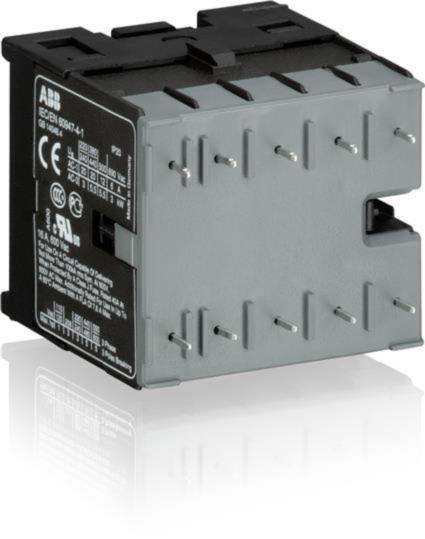

GJL1213009R0011 bc6-30-01-p-01 24vdc mini ABB Contactor 4kw

Why Choose the ABB BC6-30-01-P-01 Mini Contactor?

The ABB BC6-30-01-P-01, part number GJL1213009R0011, is a compact and highly reliable 3-pole mini contactor with solder pin PCB connections designed for switching motors, control circuits and industrial electrical loads in applications where dependable performance and compact PCB integration are essential. As part of the trusted ABB BC6 mini contactor series, it delivers stable switching performance and long operational life for industrial automation, OEM machinery and electronic control assemblies.

This compact contactor features 3 normally open main contacts and 1 normally closed auxiliary contact, making it ideal for motor control, signalling and automation duties. Its solder pin terminal design enables direct PCB mounting for compact control systems while maintaining ABB’s proven electrical reliability and durable industrial construction.

With a 24 V DC control coil and support for switching three-phase motors up to 4 kW AC-3 at 400 V, the ABB BC6-30-01-P-01 is widely used in industrial automation, HVAC equipment, machine building and compact electrical control cabinets requiring PCB-mounted switching technology.

Key Advantages

• Compact PCB-mount mini contactor for industrial automation systems.
• 3 NO main contacts with 1 NC auxiliary contact.
• 24 V DC control coil suitable for industrial DC control circuits.
• Supports motor switching up to 4 kW AC-3.
• Solder pin terminals enable direct PCB integration.
• Noiseless and hum-free coil operation.
• Reliable ABB contact technology for long operational life.

Key Features

• ABB BC6 mini contactor series.
• 3-pole contactor configuration.
• 3 normally open main contacts.
• 1 normally closed auxiliary contact.
• 24 V DC control voltage.
• 20 A AC-1 rated operational current.
• 4 kW AC-3 motor switching capability at 400 V.
• Solder pin PCB connections.
• DIN rail mounting compatible.
• Integrated switch position indication.

Technical Specifications

• Manufacturer: ABB
• Series: BC6 Mini Contactors
• Model: BC6-30-01-P-01
• Part number: GJL1213009R0011
• Product type: Mini contactor
• Main contacts: 3 NO
• Auxiliary contacts: 1 NC
• Number of poles: 3P
• Rated operational current AC-1: 12 A
• Rated operational current AC-3: 9 A at 400 V
• Rated operational power AC-3: 4 kW at 400 V
• Control voltage: 24 V DC
• Coil consumption: 3.5 W
• Rated insulation voltage: 690 V
• Impulse withstand voltage: 6 kV
• Terminal type: Solder pin PCB connections
• Mounting type: PCB / DIN rail mounting
• Protection rating: IP20
• Operating temperature: -25 °C to +55 °C
• Mechanical durability: 10 million operations
• Dimensions (W × H × D): approx. 47.5 × 45.5 × 51.5 mm
• Weight: approx. 0.17 kg
• Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1

Reliable Switching for Industrial Control Systems

The ABB BC6-30-01-P-01 mini contactor is engineered to provide dependable switching performance for motors and industrial loads while maintaining compact dimensions suitable for PCB-mounted automation systems and electrical control assemblies.

ABB mini contactors are trusted by panel builders, automation engineers and OEM manufacturers because of their reliable contact system, noiseless DC coil operation and compact installation footprint. The solder pin connection design supports efficient PCB integration for specialist automation equipment and control electronics.

Typical Applications

• Industrial motor control systems.
• PCB-mounted automation equipment.
• HVAC and ventilation systems.
• Industrial signalling and switching circuits.
• OEM machinery and manufacturing systems.
• Compact electrical control assemblies.

Trusted by Automation Engineers Worldwide

ABB mini contactors are trusted globally for compact design, dependable switching performance and reliable PCB integration in industrial automation and machinery applications.
