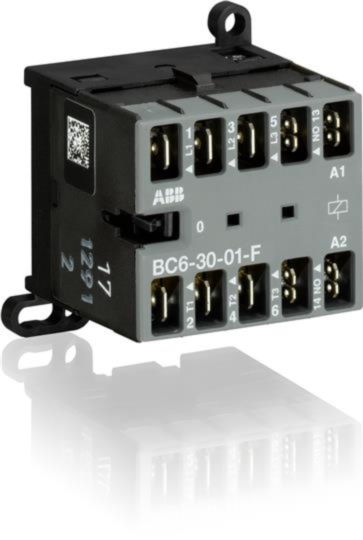

GJL1213003R0011 bc6-30-01-f-01 24vdc mini ABB Contactor 4kw

Why Choose the ABB BC6-30-01-11 Mini Contactor?

The ABB BC6-30-01-11, part number GJL1213003R0011, is a compact and highly reliable 3-pole mini contactor engineered for switching motors, control circuits and industrial electrical loads in applications where dependable performance and efficient use of panel space are essential. As part of the advanced ABB BC6 mini contactor series, it delivers stable switching performance and long operational life for industrial automation, OEM machinery and commercial installations.

This compact contactor features 3 normally open main contacts and 1 normally closed auxiliary contact, making it ideal for motor control, signalling and automation duties. Its screw terminal connection design provides secure and dependable wiring while maintaining ABB’s proven electrical reliability and durable industrial construction.

With a 24 V AC/DC universal control coil and support for switching three-phase motors up to 4 kW AC-3 at 400 V, the ABB BC6-30-01-11 is ideal for PLC-controlled systems, HVAC equipment, industrial automation and compact electrical control cabinets requiring flexible switching technology compatible with both AC and DC control voltages.

Key Advantages

• Compact mini contactor for industrial automation systems.
• 3 NO main contacts with 1 NC auxiliary contact.
• 24 V AC/DC universal control coil for flexible control integration.
• Supports motor switching up to 4 kW AC-3.
• Screw terminals provide secure and reliable wiring.
• Reliable ABB contact technology for long operational life.
• Compact footprint for modern control panel designs.

Key Features

• ABB BC6 mini contactor series.
• 3-pole contactor configuration.
• 3 normally open main contacts.
• 1 normally closed auxiliary contact.
• 24 V AC/DC universal control voltage.
• 20 A AC-1 rated operational current.
• 4 kW AC-3 motor switching capability at 400 V.
• Screw terminal connections.
• DIN rail and wall mounting compatible.
• Integrated switch position indication.

Technical Specifications

• Manufacturer: ABB
• Series: BC6 Mini Contactors
• Model: BC6-30-01-11
• Part number: GJL1213003R0011
• Product type: Mini contactor
• Main contacts: 3 NO
• Auxiliary contacts: 1 NC
• Number of poles: 3P
• Rated operational current AC-1: 20 A
• Rated operational current AC-3: 9 A at 400 V
• Rated operational power AC-3: 4 kW at 400 V
• Control voltage: 24 V AC/DC
• Frequency: 50 / 60 Hz
• Rated insulation voltage: 690 V
• Impulse withstand voltage: 6 kV
• Terminal type: Screw terminals
• Mounting type: DIN rail / wall mounting
• Protection rating: IP20
• Operating temperature: -25 °C to +55 °C
• Mechanical durability: 10 million operations
• Dimensions (W × H × D): approx. 52.5 × 57.5 × 46.7 mm
• Weight: approx. 0.175 kg
• Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1

Reliable Switching for Industrial Control Systems

The ABB BC6-30-01-11 mini contactor is engineered to provide dependable switching performance for motors and industrial loads while maintaining compact dimensions suitable for modern automation systems and electrical control cabinets.

Its universal AC/DC control coil simplifies panel design and spare parts management by supporting both AC and DC control circuits. ABB mini contactors are trusted by panel builders, automation engineers and OEM manufacturers because of their reliable contact system, durable construction and compact installation footprint.

Typical Applications

• Industrial motor control systems.
• PLC-controlled automation equipment.
• HVAC and ventilation systems.
• Industrial signalling and switching circuits.
• OEM machinery and manufacturing systems.
• Compact electrical control cabinets.

Trusted by Automation Engineers Worldwide

ABB mini contactors are trusted globally for compact design, dependable switching performance and flexible AC/DC control compatibility in industrial automation and machinery applications.
