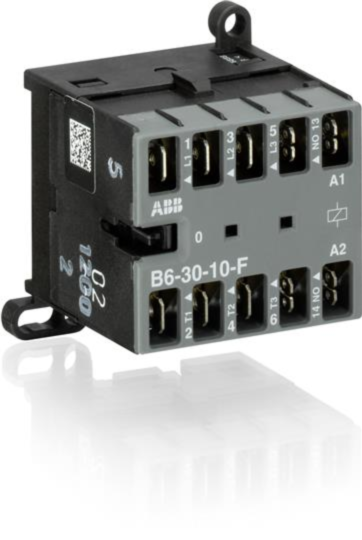

GJL1211003R0101 b6-30-10-f-01 24ac mini ABB Contactor 4kw
MPN: GJL1211003R0101
Alt. SKU: B6-30-10-F-01
Special Price
£32.53
£27.11
Regular Price
£50.04
Why Choose the B6-30-10-F-01 [GJL1211003R0101]
The B6-30-10-F mini contactor is a compact 3 pole contactor with 1 auxiliary contact and flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specification
- Type: Mini contactor, 3 poles with 1 normally open auxiliary contact.
- Rated Operational Voltage: Main circuit up to 690 V AC, auxiliary circuit up to 690 V AC / 250 V DC.
- Rated Operational Current: AC-1 up to 20 A at 220/240 V; AC-3 up to 9 A at 230/400 V.
- Rated Operational Power: Up to 4 kW (AC-3), three-phase at 400 - 500 V.
- Contact Configuration: 3 NO main contacts, 1 NO auxiliary contact, flat pin terminals.
- Insulation & Impulse Withstand Voltage: Rated insulation voltage 690 V; impulse withstand voltage 6 kV (main and auxiliary).
- Protection Rating: IP20 on all terminals (main, control, auxiliary).
- Mounting: Suitable for DIN rail TH35-15 and TH35-7.5 mounting per IEC 60715.
- Mechanical Durability: 10 million operating cycles.
- Maximum Switching Frequency: Up to 600 cycles per hour depending on utilisation category.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage for the B6-30-10-F mini contactor?
The rated operational voltage for the main circuit is up to 690 V AC, and for the auxiliary circuit, it is also up to 690 V AC / 250 V DC.
What is the maximum load capacity of the B6-30-10-F mini contactor?
The mini contactor can handle loads up to 4 kW (AC-3) and 20 A (AC-1).
Can the B6-30-10-F mini contactor be mounted on a DIN rail?
Yes, it is suitable for DIN rail TH35-15 and TH35-7.5 mounting per IEC 60715.
What is the protection rating of the B6-30-10-F mini contactor?
The protection rating is IP20 on all terminals (main, control, auxiliary).
What is the mechanical durability of the B6-30-10-F mini contactor?
The mechanical durability is rated for 10 million operating cycles.
What types of loads can the B6-30-10-F mini contactor control?
It can control single or three-phase loads up to 4 kW (AC-3) and switch control signals.
What is the maximum switching frequency of the B6-30-10-F mini contactor?
The maximum switching frequency is up to 600 cycles per hour, depending on the utilisation category.
| Manufacturer Part Number | GJL1211003R0101 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | B6-30-10-F-01 |
| Packed Quantity | 1 |
| KW Rating | 4kW |
| Range | B6 |
| Inbuilt Aux | 1 N/O |
| Barcode | 4013614051449 |
| Product Lead Time | Please contact us for a delivery time |
