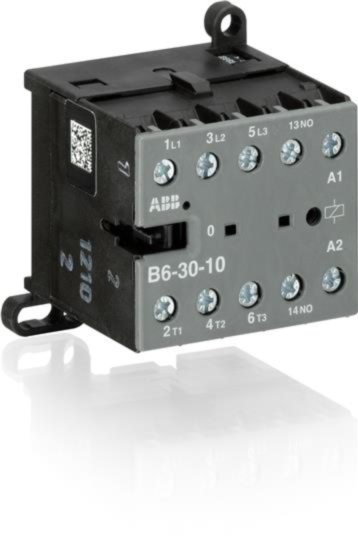

GJL1211001R8104 b6-30-10-84 110ac mini ABB Contactor 4kw
MPN: GJL1211001R8104
Alt. SKU: B6-30-10-84
Special Price
£24.62
£20.52
Regular Price
£37.88
Why Choose the B6-30-10-84 [GJL1211001R8104]
The B6-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specification
- Function: Compact 3-pole mini contactor with 1 auxiliary normally open contact for switching single and three-phase loads.
- Rated Operational Voltage: Main circuit up to 690 V AC and 220 V DC; auxiliary circuit up to 690 V AC and 250 V DC.
- Current Ratings: AC-1 20 A at 220/240 V; AC-3 9 A at 230 V; DC-13 2.5 A at 24 V.
- Contact Configuration: 3 main NO contacts, 1 auxiliary NO contact, screw terminals.
- Insulation Voltage: Rated insulation voltage 690 V; impulse withstand voltage 6 kV (main and auxiliary circuits).
- Degree of Protection: IP20 on all terminals (main, auxiliary, control circuits).
- Terminal Types and Sizes: Screw terminals; flexible and rigid wires 1 to 4 mm² (ferrule compatible).
- Mechanical Durability: 10 million operating cycles.
- Mounting: Suitable for DIN rail TH35-15 and TH35-7.5 or wall mounting.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum load capacity of the B6-30-10 mini contactor?
The B6-30-10 mini contactor can handle single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1).
What is the rated operational voltage for this contactor?
The rated operational voltage is up to 690 V AC and 220 V DC for the main circuit, and up to 690 V AC and 250 V DC for the auxiliary circuit.
How is the B6-30-10 mini contactor mounted?
This contactor can be mounted on DIN rail TH35-15 and TH35-7.5 or directly on a wall.
What types of wires can be used with the screw terminals?
The screw terminals are compatible with flexible and rigid wires ranging from 1 to 4 mm², including ferrule connections.
What is the degree of protection for the terminals?
The degree of protection for all terminals is IP20.
What is the mechanical durability of the B6-30-10 mini contactor?
The mechanical durability is rated at 10 million operating cycles.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | GJL1211001R8104 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | B6-30-10-84 |
| KW Rating | 4kW |
| Range | B6 |
| Inbuilt Aux | 1 N/O |
| Barcode | 4013614149825 |
| Product Lead Time | Please contact us for a delivery time |
