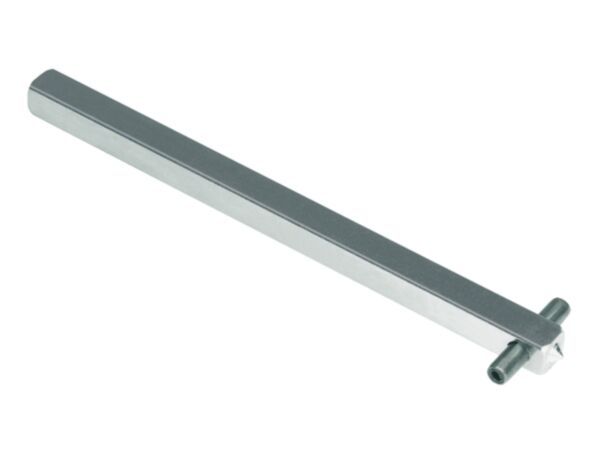

GEX7250N - DOOR COUPLING EXTENSION

Why Choose the GEX7250N?

The Lovato GEX7250N shaft extension is a robust accessory for door-coupling lever handles, designed to extend reach by 250mm with a precise 7mm square section for secure torque transfer. Built for reliable panel integration, this extension helps bridge deeper enclosures and set-backs, ensuring smooth operation of switchgear mechanisms and consistent alignment between handle and device in demanding industrial control applications.

Compatible with Lovato switch disconnector ranges GE0160E…GE0200E, GE0160ET4…GE0200ET4, GE0050F…GE0125F, GE0050FT4…GE0125FT4, GE0160N and GE0160NT4, this shaft extension simplifies retrofits and panel builds. It conforms to IEC/EN 60947-1 and IEC/EN 60947-3, supporting safe, dependable operation, and comes from a manufacturer committed to sustainability for consistent handle-to-device coupling.

Key Benefits

• 250mm extension bridges deep enclosures and set-back mounting distances.
• 7mm square shaft ensures positive drive and reliable torque transfer.
• Designed for door-coupling lever handle assemblies on switchgear.
• Compatible with GE0160E…GE0200E and GE0050F…GE0125F ranges.
• Supports T4 variants across E and F series.
• Conforms to IEC/EN 60947-1 and IEC/EN 60947-3 standards.
• Straightforward retrofit accessory for panel builds and maintenance upgrades.

Technical Specification

• Type of product: Accessories
• Type of accessories: Shaft extension
• Accessories for: GE0160E…GE0200E, GE0160ET4…GE0200ET4, GE0050F…GE0125F, GE0050FT4…GE0125FT4, GE0160N, GE0160NT4
• LOVATO: Electric S.p.A.
• Via: Don E. Mazza, 12
• Cap.: Soc. Vers. Euro 3.200.000
• Cod.: Fisc. e Part. IVA n. 01921300164
• ID.: NO. IT 01921300164
• SALES: ORGANIZATION
• Czech: Republic
• Other: country
• Email: address
• Stay: in touch with LOVATO Electric!

What’s Included

• Lovato GEX7250N shaft extension (250mm, 7mm square)
• Protective packaging
• Basic installation information (from manufacturer)

Applications

• Extending door-coupled operator reach in deep or recessed enclosures.
• Retrofitting Lovato GE0160E…GE0200E and GE0050F…GE0125F devices.
• Panel builds requiring precise handle-to-device coupling alignment.
• Maintenance replacements where original shaft extensions need renewal.

Safety note: Always isolate power before installation and ensure only qualified personnel fit and adjust the shaft extension in accordance with applicable standards and manufacturer instructions.
