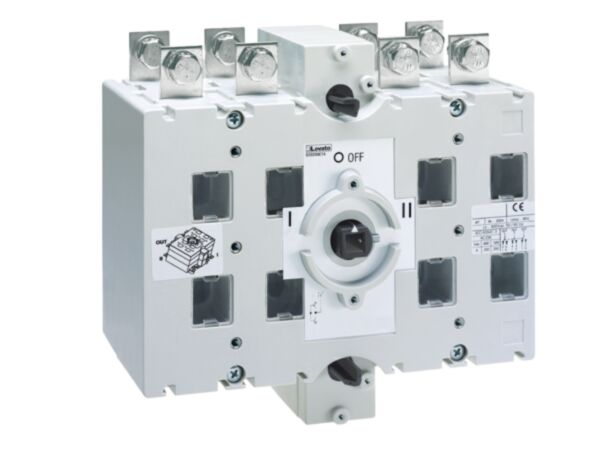

GE0800ET4 - 4P CHANGEOVER SWITCH

Why Choose the GE0800ET4?

Lovato’s GE0800ET4 is a heavy-duty changeover switch designed for reliable AC source transfer across four poles. With an IEC conventional free air thermal current of 800 A and AC21/AC22/AC23 ratings up to 800 A, it suits demanding distribution duties. The SKU GE0800ET4 delivers 1000 V rated insulation, 12 kV impulse withstand and up to 315 kW AC23A power at 400 V.

Engineered for panel installation, this unit features screw-on plate mounting, IP20 front protection and a robust 10,000-cycle mechanical life. It offers a 100 kA conditional short-circuit rating with gG800 fuse protection, 24 Nm max terminal torque, and operates from -25 to 55 °C up to 3000 m altitude. Conforms to IEC/EN 60947-1 and 60947-3, with Sustainability certification.

Key Benefits

• 800 A Ith and strong AC21/AC22/AC23 operational ratings.
• Four-pole configuration for comprehensive load and source switching.
• 1000 V Ui and 12 kV impulse withstand for insulation robustness.
• 100 kA conditional short-circuit rating with gG800 fuse coordination.
• Mechanical life of 10,000 cycles supports long service intervals.
• IP20 frontal protection enhances operator safety at the switch face.
• Screw-on plate installation simplifies secure panel mounting.
• Wide -25 to 55 °C operating range; altitude up to 3000 m.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 800 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 800 A
• Operating current Ie AC21A 500 V: 800 A
• Operating current Ie AC21A 690 V: 800 A
• Operating current Ie AC22A 400 V: 800 A
• Operating current Ie AC22A 500 V: 800 A
• Operating current Ie AC22A 690 V: 630 A
• Operating current Ie AC23A 400 V: 630 A
• Operating current Ie AC23A 500 V: 400 A
• Power dissipation per pole (max): 72 W
• Rated operational power AC23A 400 V: 315 kW
• Rated operational power AC23A 690 V: 272 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG800
• Making capacity AC23A 400 V: 8000 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0800ET4 four-pole changeover switch
• Product documentation

Applications

• Manual changeover between two AC power sources
• Load transfer and isolation in industrial distribution panels
• Switching of resistive and mixed loads within AC21/AC22 duty
• Motor and inductive load switching within AC23 duty limits

Safety note: Install and commission by qualified personnel only. Observe stated ratings, tighten terminals to 24 Nm, and use gG800 fuses for protection. Ensure suitable enclosure and operate within the specified temperature and altitude limits.
