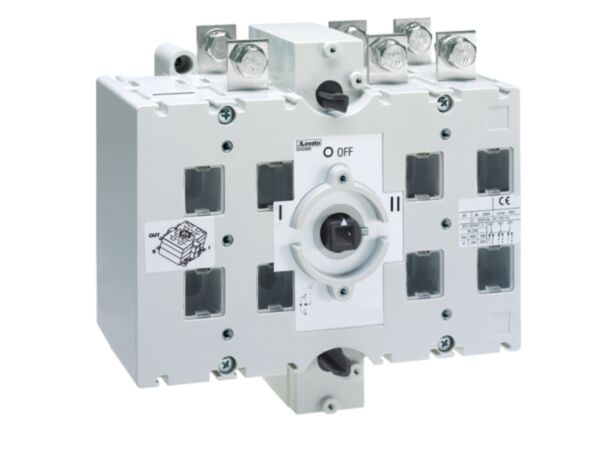

GE0800E - 3P CHANGEOVER SWITCH

Why Choose the GE0800E?

The Lovato GE0800E is a robust three-pole changeover switch for dependable mains/backup transfer and isolation in AC systems. Rated Ith 800 A and designed for screw-on plate installation, it offers Ui 1000 V and Uimp 12 kV, with power dissipation per pole up to 72 W. The GE0800E complies with IEC/EN 60947-1 and 60947-3, delivering secure operation in industrial panels and switchboards.

Engineered for versatility, the GE0800E supports AC21A and AC22A duty up to 800 A, with AC23A capability of 630 A at 400 V and 400 A at 500 V. Rated operational power reaches 315 kW at 400 V and 272 kW at 690 V. A frontal IP20 degree, 10,000 mechanical cycles, 24 Nm max terminal torque and -25 to 55 °C operation suit demanding environments up to 3000 m altitude.

Key Benefits

• Three-pole AC changeover for reliable mains/backup transfer.
• High current capacity: Ith 800 A, AC21A/AC22A to 800 A.
• AC23A switching capability for inductive loads up to 630 A.
• High insulation ratings: Ui 1000 V, Uimp 12 kV.
• IP20 frontal protection for safer panel integration.
• Durable design with 10,000 mechanical life cycles.
• Screw-on plate mounting simplifies panel installation.
• Compliant with IEC/EN 60947-1 and 60947-3 standards.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 800 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 800 A
• Operating current Ie AC21A 500 V: 800 A
• Operating current Ie AC21A 690 V: 800 A
• Operating current Ie AC22A 400 V: 800 A
• Operating current Ie AC22A 500 V: 800 A
• Operating current Ie AC22A 690 V: 630 A
• Operating current Ie AC23A 400 V: 630 A
• Operating current Ie AC23A 500 V: 400 A
• Power dissipation per pole (max): 72 W
• Rated operational power AC23A 400 V: 315 kW
• Rated operational power AC23A 690 V: 272 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG800
• Making capacity AC23A 400 V: 8000 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0800E three-pole changeover switch
• Manufacturer datasheet (downloadable)
• Basic installation and safety information

Applications

• Mains-to-generator changeover in industrial switchboards
• Power distribution transfer in commercial facilities
• Load isolation and selection in process equipment
• Backup power switching in data and telecom rooms
• Transfer switching for HVAC and building services

Safety note: Installation and commissioning must be performed by qualified personnel. Isolate all supplies before work, apply appropriate short-circuit protection (gG800), and tighten terminals to 24 Nm in accordance with IEC/EN 60947 and local regulations.
