GE0800 - 3P SWITCH DISCONNECTOR

Why Choose the GE0800?

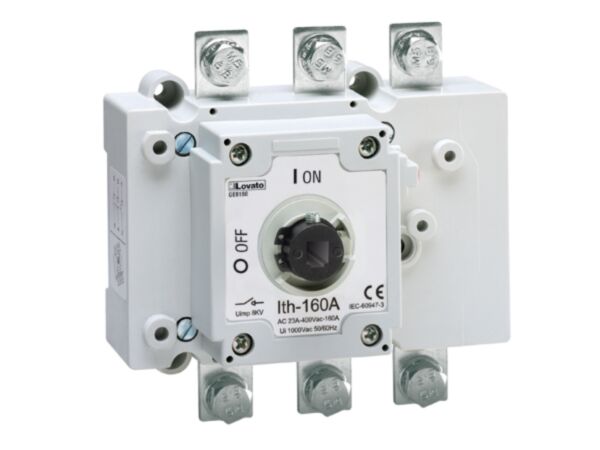

The Lovato GE0800 is a three-pole switch disconnector engineered for reliable isolation in demanding AC applications. Rated Ith 800 A with AC21A/AC22A/AC23A utilisation categories, it provides robust performance across 400–690 V circuits. With Ui 1000 V and Uimp 12 kV, the GE0800 ensures dependable dielectric strength. Screw-on plate installation and an IP20 frontal degree simplify integration within control panels and switchboards.

Built for longevity with 10,000 mechanical cycles, this GE series device withstands demanding service. It offers conditional short-circuit current 100 kA (with gG800 fuse), plus AC23A making 6,300 A and breaking 5,000 A at 400 V. Rated operational power reaches 443 kW at 400 V and 300 kW at 690 V. Operating temperature is -25 to 55 °C, max altitude 3000 m, pollution degree 3, compliant with IEC/EN 60947-1 and 60947-3.

Key Benefits

• High 800 A Ith for heavy-duty three-pole AC isolation.
• Wide dielectric strength: Ui 1000 V and Uimp 12 kV.
• Proven endurance with 10,000 mechanical operating cycles.
• Robust AC23A power: 443 kW at 400 V, 300 kW at 690 V.
• Strong fault capability, 100 kA conditional with gG800 fuse.
• Flexible utilisation categories AC21A, AC22A and AC23A.
• Simple screw-on plate mounting and IP20 frontal safety.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 800 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 800 A
• Operating current Ie AC21A 500 V: 800 A
• Operating current Ie AC21A 690 V: 800 A
• Operating current Ie AC22A 400 V: 800 A
• Operating current Ie AC22A 500 V: 800 A
• Operating current Ie AC22A 690 V: 500 A
• Operating current Ie AC23A 400 V: 800 A
• Operating current Ie AC23A 500 V: 500 A
• Operating current Ie AC23A 690 V: 315 A
• Power dissipation per pole (max): 56 W
• Rated operational power AC23A 400 V: 443 kW
• Rated operational power AC23A 690 V: 300 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG800
• Making capacity AC23A 400 V: 6300 A
• Breaking capacity AC23A 400 V: 5000 A
• Mechanical life: 10000 cycles
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0800 switch disconnector (3-pole, 800 A)
• Manufacturer datasheet and specifications (downloadable)

Applications

• Main isolation for AC circuits in industrial control panels
• Distribution switchboards requiring three-pole 800 A disconnection
• Switching of mixed and motor loads per AC23A category limits
• Plate-mounted assemblies using screw-on installation
• Installations up to a 1000 V insulation level

Safety note: Installation and operation must be performed by qualified personnel. De-energise circuits before work and use within the stated ratings; fit the specified gG800 fuse for short-circuit protection.
