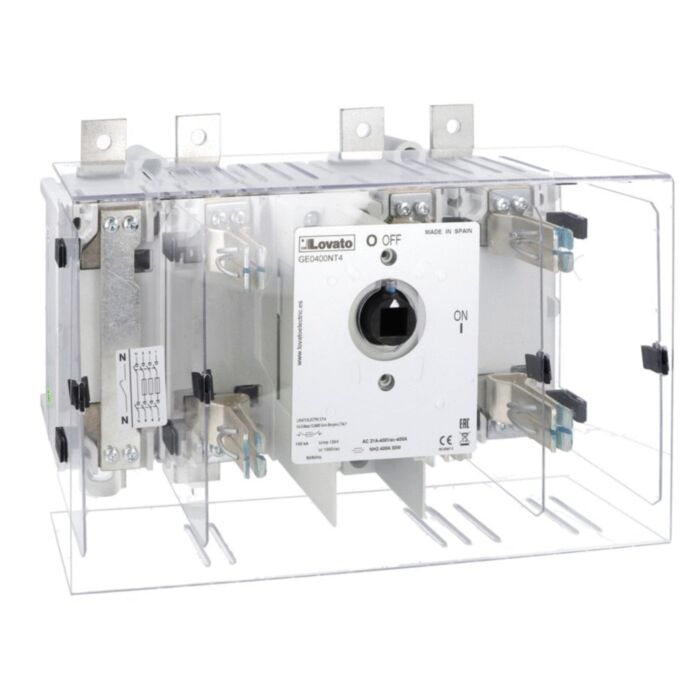

GE0630NT4 - 4P SWITCH DISCONNECTOR W/NH FUSE HOLDER

Why Choose the GE0630NT4?

Lovato’s GE0630NT4 is a robust four‑pole switch disconnector with NH fuse holder for AC applications up to 630 A. It offers a rated insulation voltage Ui of 1000 V and a 12 kV impulse withstand, with 100 kA conditional short‑circuit capability. IP20 frontal protection and compliance with IEC/EN 60947‑1 and 60947‑3 make it a dependable choice for panel builders.

Consistent 630 A AC21A and AC22A ratings at 400, 500 and 690 V, plus 400 A AC23A at 690 V, support demanding load switching. Screw‑on plate installation, a 5000‑cycle mechanical life, and -25 to 55 °C operating range simplify integration and maintenance. NH fuse technology and four‑pole isolation enhance safety in industrial and commercial distribution panels.

Key Benefits

• High 100 kA conditional short-circuit rating enhances system protection.
• Ui 1000 V and Uimp 12 kV for robust insulation performance.
• 630 A AC21A/AC22A ratings across 400, 500 and 690 V.
• 400 A AC23A at 690 V for demanding switching duties.
• IP20 frontal protection improves operator safety during panel access.
• Screw-on plate mounting simplifies panel integration and replacement.
• Four-pole NH fuse holder design streamlines protection and isolation.
• Reliable 5000-cycle mechanical life for enduring service in panels.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 630 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 630 A
• Operating current Ie AC21A 500 V: 630 A
• Operating current Ie AC21A 690 V: 630 A
• Operating current Ie AC22A 400 V: 630 A
• Operating current Ie AC22A 500 V: 630 A
• Operating current Ie AC22A 690 V: 630 A
• Operating current Ie AC23A 400 V: 630 A
• Operating current Ie AC23A 500 V: 630 A
• Operating current Ie AC23A 690 V: 400 A
• Power dissipation per pole (max): 44 W
• Rated operational power AC23A 400 V: 355 kW
• Rated operational power AC23A 690 V: 370 kW
• Conditional short-circuit current (rms): 100 kA
• Making capacity AC23A 400 V: 6300 A
• Breaking capacity AC23A 400 V: 5100 A
• Mechanical life: 5000 cycles
• Terminal tightening torque (max): 45 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0630NT4 four-pole switch disconnector with NH fuse holder
• Main unit ready for screw-on plate installation
• Manufacturer datasheet (digital download)

Applications

• Load isolation and protection in industrial and commercial distribution panels
• Switchboard and panelboard applications requiring NH fuse protection and four-pole disconnection
• AC load switching up to AC23A duties at 400, 500 and 690 V
• Integration in control panels where 630 A disconnection is required

Safety note: Install and service only by qualified personnel. Always isolate the supply before work, select compatible NH fuses, and adhere to the stated ratings and IEC/EN guidelines.
