GE0630N - 3P SWITCH DISCONNECTOR W/NH FUSE HOLDER

Why Choose the GE0630N?

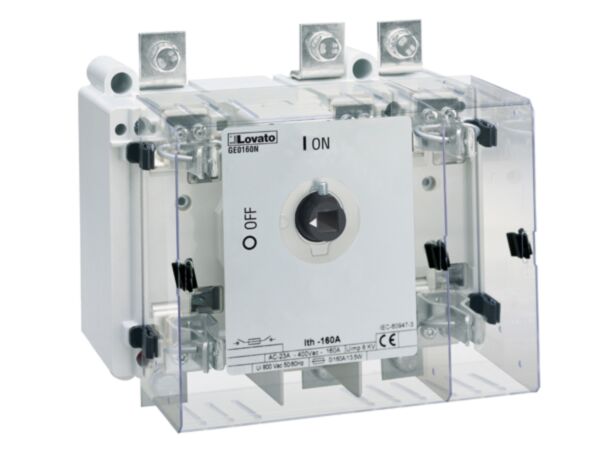

Engineered for dependable three-phase isolation, the Lovato GE0630N switch disconnector with NH fuse holder delivers 630 A Ith for heavy-duty AC applications. This three-pole, screw-on-plate device integrates disconnection and fuse protection in one compact unit, streamlining panel layouts. Built to the GE series design, it supports rigorous industrial requirements where safe, clear isolation and coordinated protection are essential.

Rated Ui 1000 V with 12 kV impulse withstand, it achieves AC21A/AC22A currents of 630 A up to 690 V, and AC23A 400 A at 690 V. Performance includes 100 kA conditional short-circuit capability, IP20 front protection and a mechanical life of 5,000 cycles. Designed for -25 to 55 °C operation and screw-on-plate installation, it features NH fuse acceptance and 45 Nm max terminal torque, meeting IEC/EN 60947-1 and 60947-3.

Key Benefits

• 630 A Ith capacity for demanding three-phase AC isolation duties.
• Three-pole configuration suited to balanced three-phase circuits.
• Integrated NH fuse holder simplifies protection and disconnection.
• Ui 1000 V and Uimp 12 kV enhance dielectric performance.
• 100 kA conditional short-circuit withstand aids system coordination.
• IP20 front protection improves operator safety at the panel.
• Operates from -25 to 55 °C for varied environments.
• Mechanical life of 5,000 cycles supports long-term reliability.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 630 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 630 A
• Operating current Ie AC21A 500 V: 630 A
• Operating current Ie AC21A 690 V: 630 A
• Operating current Ie AC22A 400 V: 630 A
• Operating current Ie AC22A 500 V: 630 A
• Operating current Ie AC22A 690 V: 630 A
• Operating current Ie AC23A 400 V: 630 A
• Operating current Ie AC23A 500 V: 630 A
• Operating current Ie AC23A 690 V: 400 A
• Power dissipation per pole (max): 44 W
• Rated operational power AC23A 400 V: 355 kW
• Rated operational power AC23A 690 V: 370 kW
• Conditional short-circuit current (rms): 100 kA
• Making capacity AC23A 400 V: 6300 A
• Breaking capacity AC23A 400 V: 5100 A
• Mechanical life: 5000 cycles
• Terminal tightening torque (max): 45 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0630N three-pole switch disconnector with NH fuse holder
• Manufacturer documentation and safety instructions
• Protective packaging for transit

Applications

• Three-phase power distribution and feeder isolation
• Industrial switchboards and control panels
• Motor control centres requiring local isolation
• Maintenance switching and lockout procedures

Safety note: Installation and commissioning must be performed by qualified personnel. Always isolate the supply before work, select suitable NH fuses, and observe the stated torque, ratings and environmental limits.
