GE0500ET4 - 4P CHANGEOVER SWITCH

Why Choose the GE0500ET4?

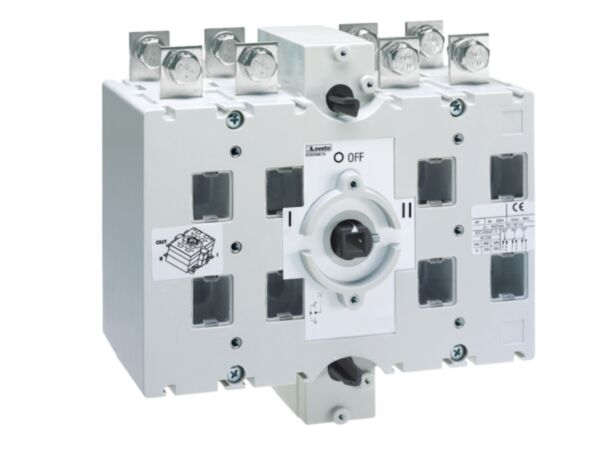

The Lovato GE0500ET4 is a four‑pole changeover switch for AC systems, rated Ith 500 A and designed for screw‑on plate installation. With a rated insulation voltage of 1000 V and 12 kV impulse withstand, the SKU GE0500ET4 provides dependable switching across demanding panels. It delivers AC21A and AC22A operational currents up to 500 A, plus AC23A capability of 400 A at 400 V.

Built for reliability, it offers a 100 kA conditional short‑circuit current when protected by a gG500 fuse, and a frontal IP20 degree with pollution degree 3. Mechanical life is 10,000 cycles, with 24 Nm maximum terminal torque, operating temperatures from −25 to 55 °C, storage −40 to 70 °C, and installation up to 3000 m altitude. Complies with IEC/EN 60947‑1 and 60947‑3.

Key Benefits

• Four-pole AC changeover switching with robust 500 A Ith rating.
• High insulation strength: 1000 V Ui and 12 kV Uimp.
• Strong AC23A performance: 400 A at 400 V, 250 A at 500 V.
• Conditional short-circuit withstand 100 kA with gG500 fuse.
• Compact panel integration via screw-on plate installation.
• IP20 frontal protection with pollution degree 3 suitability.
• Durable design with 10,000 mechanical operating cycles.
• Wide operating temperature from −25 to 55 °C.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 500 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 500 A
• Operating current Ie AC21A 500 V: 500 A
• Operating current Ie AC21A 690 V: 500 A
• Operating current Ie AC22A 400 V: 500 A
• Operating current Ie AC22A 500 V: 500 A
• Operating current Ie AC22A 690 V: 400 A
• Operating current Ie AC23A 400 V: 400 A
• Operating current Ie AC23A 500 V: 250 A
• Power dissipation per pole (max): 28 W
• Rated operational power AC23A 400 V: 200 kW
• Rated operational power AC23A 690 V: 173 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG500
• Making capacity AC23A 400 V: 6300 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0500ET4 four-pole changeover switch
• Product documentation from manufacturer
• Compliance information per IEC/EN 60947

Applications

• AC changeover duties within stated operational current and voltage ratings
• Four-pole switching in panel-mounted control and distribution assemblies
• Installations requiring IEC/EN 60947-1 and 60947-3 conformity
• Environments up to pollution degree 3 and 3000 m altitude

Safety note: Install and commission by qualified personnel only. Follow IEC/EN 60947 requirements, use the specified gG500 fuse, observe the 24 Nm terminal torque, and operate within the stated electrical and environmental ratings.
