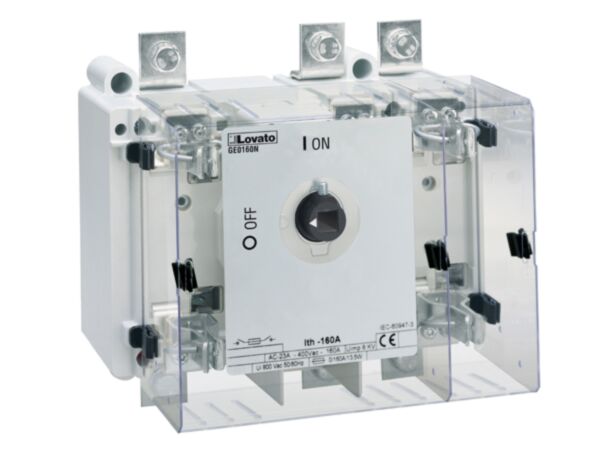

GE0400N - 3P SWITCH DISCONNECTOR W/NH FUSE HOLDER

Why Choose the GE0400N?

The Lovato GE0400N is a three-pole switch disconnector with NH fuse holder designed for dependable AC isolation and protection. With an IEC Ith of 400 A and Ui of 1000 V, it handles demanding distribution duties. The GE0400N offers AC21/AC22 ratings to 400 A and AC23A performance up to 315 A at 690 V, with a conditional short-circuit current of 100 kA.

Engineered for reliability, it delivers 12 kV impulse withstand, IP20 frontal protection and a mechanical life of 10,000 cycles. Rated operational power reaches 220 kW at 400 V and 250 kW at 690 V. The unit mounts securely by screw on plate, operates from -25 to 55 °C up to 3000 m, and meets IEC/EN 60947-1 and 60947-3.

Key Benefits

• 400 A Ith for high-current isolation and load switching.
• AC23A switching up to 315 A at 690 V.
• 1000 V Ui and 12 kV impulse withstand for insulation robustness.
• IP20 frontal protection enhances operator safety during operation.
• Durable design with 10,000 mechanical cycles for long service.
• Screw-on-plate mounting for secure, straightforward installation.
• Withstands -25 to 55 °C and up to 3000 m altitude.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 400 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 400 A
• Operating current Ie AC21A 500 V: 400 A
• Operating current Ie AC21A 690 V: 400 A
• Operating current Ie AC22A 400 V: 400 A
• Operating current Ie AC22A 500 V: 400 A
• Operating current Ie AC22A 690 V: 400 A
• Operating current Ie AC23A 400 V: 400 A
• Operating current Ie AC23A 500 V: 400 A
• Operating current Ie AC23A 690 V: 315 A
• Power dissipation per pole (max): 29 W
• Rated operational power AC23A 400 V: 220 kW
• Rated operational power AC23A 690 V: 250 kW
• Conditional short-circuit current (rms): 100 kA
• Making capacity AC23A 400 V: 4000 A
• Breaking capacity AC23A 400 V: 3200 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0400N three-pole switch disconnector with NH fuse holder
• Manufacturer datasheet (downloadable)
• Basic installation and safety information

Applications

• Main and emergency isolation in industrial switchboards and panels
• Load switching and protection for AC distribution circuits up to 690 V
• Motor feeders and outgoing ways requiring NH fuse protection
• Upstream protection and isolation in control gear assemblies
• Retrofit upgrades where 3-pole, 400 A disconnection is required

Safety note: Install and commission only by qualified personnel with power isolated. Use appropriate NH fuses, observe specified torque and clearances, and follow IEC/EN 60947 and local regulations.
