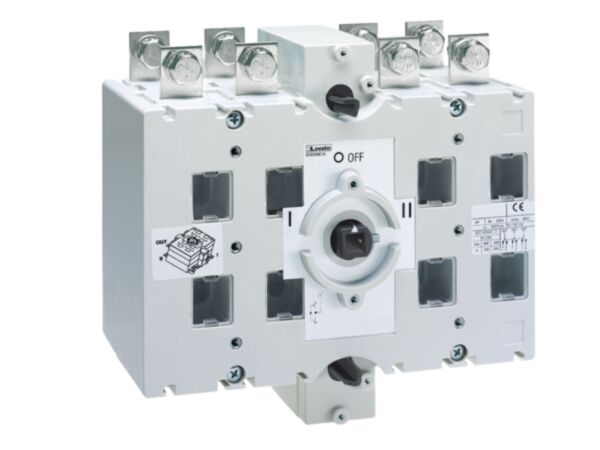

GE0400ET4 - 4P CHANGEOVER SWITCH

Why Choose the GE0400ET4?

The Lovato GE0400ET4 four-pole changeover switch delivers dependable source transfer for AC circuits with a 400 A Ith rating. As a robust changeover switch, SKU GE0400ET4 mounts screw-on plate and offers a frontal IP20 degree for operator protection. Ui is 1000 V with 8 kV Uimp, supporting secure performance in industrial control and distribution.

Built to IEC/EN 60947-1 and 60947-3, the GE series defines clear duties: AC21A/AC22A up to 400 A across 400/500/690 V, and AC23A up to 250 A at 400 V. With 100 kA conditional short-circuit current (gG400 fuse), 10,000 mechanical cycles and -25 to 55 °C operation, it ensures reliable switching and straightforward integration.

Key Benefits

• 400 A Ith handles high-capacity AC changeover with confidence.
• Four-pole configuration supports simultaneous switching of multiple conductors.
• Ui 1000 V and Uimp 8 kV improve insulation robustness.
• Clearly rated AC21A/AC22A/AC23A currents up to 690 V.
• 100 kA conditional short-circuit withstand with gG400 fuse.
• IP20 frontal degree reduces accidental touch risk during operation.
• Wide -25 to 55 °C operating range for diverse environments.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 400 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 400 A
• Operating current Ie AC21A 500 V: 400 A
• Operating current Ie AC21A 690 V: 400 A
• Operating current Ie AC22A 400 V: 400 A
• Operating current Ie AC22A 500 V: 400 A
• Operating current Ie AC22A 690 V: 315 A
• Operating current Ie AC23A 400 V: 250 A
• Operating current Ie AC23A 500 V: 200 A
• Power dissipation per pole (max): 22 W
• Rated operational power AC23A 400 V: 125 kW
• Rated operational power AC23A 690 V: 138 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG400
• Making capacity AC23A 400 V: 4000 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0400ET4 four-pole changeover switch
• Manufacturer datasheet (download link)

Applications

• Source transfer between two AC supplies within stated ratings
• Power source selection in industrial distribution panels
• Load transfer for AC21A, AC22A and AC23A duty categories
• Bypass or maintenance switching in control and power circuits

Safety note: Install and commission only by qualified personnel. Isolate all power before work, protect with the specified gG400 fuse, and operate within the stated IEC/EN 60947 ratings and IP20 limitations.
