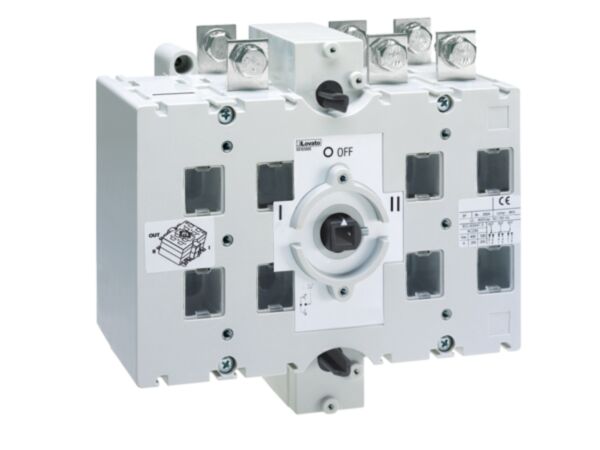

GE0400E - 3P CHANGEOVER SWITCH

Why Choose the GE0400E?

Engineered for dependable source transfer, the Lovato GE0400E is a three-pole changeover switch rated 400 A AC. Part of the GE series, this switch delivers Ui 1000 V and Uimp 8 kV performance with IP20 frontal protection. The GE0400E supports AC21A/AC22A/AC23A duties up to 400 A and installs by screw on plate for straightforward panel integration.

Designed for demanding environments, it offers conditional short-circuit current 100 kA with gG400 fuse protection, and a mechanical life of 10,000 cycles. Operating from -25 to 55 °C with IP20 frontal degree and Pollution Degree 3, it meets IEC/EN 60947-1 and 60947-3, with 24 Nm max terminal torque and suitability up to 3000 m altitude.

Key Benefits

• Three-pole, 400 A Ith for robust AC changeover switching.
• AC21A/AC22A/AC23A performance supports resistive to motor duty categories.
• Ui 1000 V and 8 kV Uimp enhance insulation and surge tolerance.
• IP20 frontal degree improves operator safety during panel access.
• Screw on plate installation speeds panel-building and service work.
• Conditional short-circuit current 100 kA with gG400 fuse coordination.
• Mechanical life of 10,000 cycles for durable operational reliability.
• Operates from -25 to 55 °C; suitable up to 3000 m altitude.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 400 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 400 A
• Operating current Ie AC21A 500 V: 400 A
• Operating current Ie AC21A 690 V: 400 A
• Operating current Ie AC22A 400 V: 400 A
• Operating current Ie AC22A 500 V: 400 A
• Operating current Ie AC22A 690 V: 315 A
• Operating current Ie AC23A 400 V: 250 A
• Operating current Ie AC23A 500 V: 200 A
• Power dissipation per pole (max): 22 W
• Rated operational power AC23A 400 V: 125 kW
• Rated operational power AC23A 690 V: 138 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG400
• Making capacity AC23A 400 V: 4000 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0400E three-pole changeover switch
• Manufacturer documentation (downloadable)

Applications

• Mains-to-generator changeover in industrial and commercial panels.
• Source selection and load transfer in power distribution systems.
• Maintenance bypass switching for critical AC equipment and UPS inputs.
• Manual changeover in control panels and motor control centres.

Safety note: Installation and commissioning must be performed by qualified personnel. Always isolate power before work, observe specified torque values, use correct gG400 fusing, and follow IEC/EN 60947 and environmental limits.
