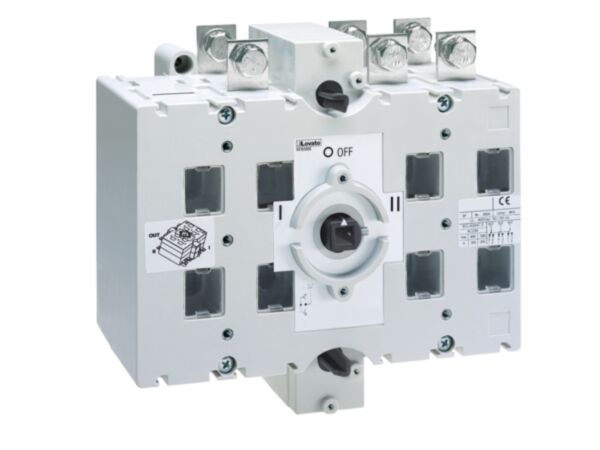

GE0315E - 3P CHANGEOVER SWITCH

Why Choose the GE0315E?

Lovato’s GE0315E is a three-pole changeover switch engineered for dependable source transfer in AC installations. Delivering 315 A Ith with Ui 1000 V and Uimp 8 kV, the GE0315E (SKU GE0315E) fits neatly into control panels via screw-on-plate mounting. Its IP20 frontal protection and pollution degree 3 design support safe operation in industrial switchgear and distribution applications.

Optimised for a wide range of loads, it carries AC21A and AC22A ratings up to 315 A and AC23A service to 200 A at 400 V. With a 100 kA conditional short-circuit rating when protected by a gG315 fuse, 10,000 mechanical cycles, and 24 Nm max terminal torque, it performs reliably from −25 to 55 °C and up to 3000 m altitude.

Key Benefits

• 315 A Ith capacity for heavy-duty changeover applications
• AC21A–AC23A performance across 400–690 V load categories
• 100 kA conditional short-circuit withstand with gG315 fuse
• IP20 frontal protection for safer panel integration
• Screw-on-plate mounting for fast, secure installation
• 10,000 mechanical cycles for long service life
• Operates from −25 to 55 °C and up to 3000 m
• 8 kV impulse withstand and Ui 1000 V insulation

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 315 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 315 A
• Operating current Ie AC21A 500 V: 315 A
• Operating current Ie AC21A 690 V: 315 A
• Operating current Ie AC22A 400 V: 315 A
• Operating current Ie AC22A 500 V: 315 A
• Operating current Ie AC22A 690 V: 250 A
• Operating current Ie AC23A 400 V: 200 A
• Operating current Ie AC23A 500 V: 160 A
• Power dissipation per pole (max): 13.5 W
• Rated operational power AC23A 400 V: 125 kW
• Rated operational power AC23A 690 V: 108 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG315
• Making capacity AC23A 400 V: 4000 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0315E three-pole changeover switch
• Downloadable manufacturer datasheet
• Basic installation instructions

Applications

• Mains–generator source transfer in industrial facilities
• Switching between redundant supplies in control panels
• Load changeover in distribution boards and switchboards
• Motor and mixed-load switching within AC23A ratings
• Process equipment requiring dependable isolation and transfer

Safety note: Install and commission only by qualified personnel. Isolate power before work, observe IP20 frontal protection and pollution degree 3, use the specified gG315 fuse, and tighten terminals up to 24 Nm.
