GE0250N - 3P SWITCH DISCONNECTOR W/NH FUSE HOLDER

Why Choose the GE0250N?

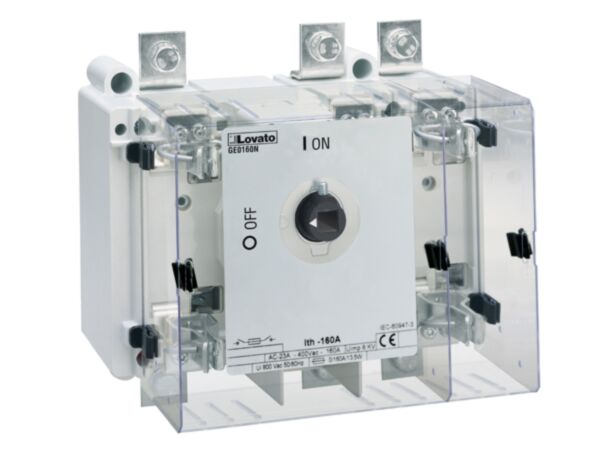

Built for dependable isolation and protection, the Lovato GE0250N is a three-pole switch disconnector with NH fuse holder rated at 250 A. Designed for AC systems, it combines compact plate-mount convenience with finger-safe IP20 frontal protection. With a 1000 V rated insulation (Ui) and 12 kV impulse withstand (Uimp), this GE series unit delivers robust performance for control panels and distribution assemblies.

The GE0250N supports demanding duty categories with Ie ratings: AC21A up to 250 A across 400–690 V, AC22A up to 250 A (200 A at 500 V), and AC23A up to 250 A at 400/500 V (200 A at 690 V). Rated operational power reaches 132 kW at 400 V and 160 kW at 690 V. It offers 100 kA conditional short-circuit capability, 10,000 mechanical cycles, and screw-on plate installation to IEC/EN 60947-1 and 60947-3.

Key Benefits

• Three-pole NH fuse disconnector for reliable on-load isolation and protection.
• 250 A Ith with AC23A operation up to 250 A at 400–500 V.
• High dielectric strength: Ui 1000 V and Uimp 12 kV.
• Robust safety performance with 100 kA conditional short-circuit withstand.
• IP20 frontal protection for finger-safe operation within control panels.
• Durable mechanism rated for 10,000 mechanical operating cycles.
• Simple screw-on plate installation to speed panel assembly.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 250 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 250 A
• Operating current Ie AC21A 500 V: 250 A
• Operating current Ie AC21A 690 V: 250 A
• Operating current Ie AC22A 400 V: 250 A
• Operating current Ie AC22A 500 V: 200 A
• Operating current Ie AC22A 690 V: 250 A
• Operating current Ie AC23A 400 V: 250 A
• Operating current Ie AC23A 500 V: 250 A
• Operating current Ie AC23A 690 V: 200 A
• Power dissipation per pole (max): 12 W
• Rated operational power AC23A 400 V: 132 kW
• Rated operational power AC23A 690 V: 160 kW
• Conditional short-circuit current (rms): 100 kA
• Making capacity AC23A 400 V: 2500 A
• Breaking capacity AC23A 400 V: 2000 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• GE0250N switch disconnector with integrated NH fuse holder
• Installation and safety instructions
• Manufacturer datasheet (downloadable)

Applications

• Main isolation and protection in industrial control panels
• Motor, HVAC and pump circuits requiring on-load disconnection
• Distribution boards and machinery with AC supplies up to 690 V
• Renewable and process equipment requiring fuse-protected isolation

Safety note: Install and service only by qualified personnel. Isolate the supply before work, select appropriate NH fuses, and tighten terminals to a maximum of 24 Nm. Observe IP20 frontal limits and stated operating conditions.
