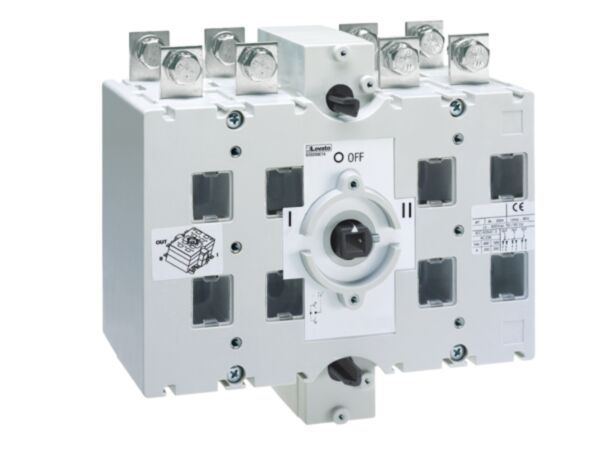

GE0250ET4 - 4P CHANGEOVER SWITCH

Why Choose the GE0250ET4?

The Lovato GE0250ET4 four-pole changeover switch delivers dependable AC supply transfer and isolation for control panels and switchboards. With Ith 250 A, Ui 1000 V and Uimp 8 kV, it is built for robust performance. GE0250ET4 mounts by screw-on plate and provides IP20 frontal protection, with AC21A/AC22A/AC23A operating currents to suit a range of load switching duties.

Engineered to IEC/EN 60947-1 and 60947-3, this switch offers 100 kA conditional short-circuit performance with gG250 fuse protection and a mechanical life of 10,000 cycles. Rated operational power reaches 100 kW at 400 V AC23A, with per-pole dissipation 8.5 W. It supports -25 to 55 °C operation, up to 3000 m altitude, pollution degree 3, and 24 Nm maximum terminal tightening torque.

Key Benefits

• Four-pole configuration for comprehensive isolation and supply changeover.
• Ith 250 A and Ui 1000 V ensure robust AC performance.
• High Uimp 8 kV withstands transient overvoltages in industrial environments.
• AC21A/AC22A/AC23A ratings support diverse resistive and inductive loads.
• 100 kA conditional short-circuit rating with gG250 fuse protection.
• IP20 frontal protection enhances user safety during panel operation.
• Screw-on plate installation simplifies mounting in control panels.
• Wide -25 to 55 °C operating range for reliable service.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 250 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 250 A
• Operating current Ie AC21A 500 V: 250 A
• Operating current Ie AC21A 690 V: 250 A
• Operating current Ie AC22A 400 V: 250 A
• Operating current Ie AC22A 500 V: 250 A
• Operating current Ie AC22A 690 V: 200 A
• Operating current Ie AC23A 400 V: 180 A
• Operating current Ie AC23A 500 V: 150 A
• Power dissipation per pole (max): 8.5 W
• Rated operational power AC23A 400 V: 100 kW
• Rated operational power AC23A 690 V: 86 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG250
• Making capacity AC23A 400 V: 3150 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0250ET4 four-pole changeover switch
• Original manufacturer packaging

Applications

• AC supply changeover and load switching within AC21A/AC22A/AC23A ratings
• Control panels and switchboards requiring 4-pole isolation
• Power distribution assemblies with screw-on plate mounting
• Installations needing Ui 1000 V and IP20 frontal protection

Safety note: Install and commission only by qualified personnel. Use the specified gG250 fuse, observe the 24 Nm maximum terminal torque, and respect the IP20, temperature, and altitude limits.
