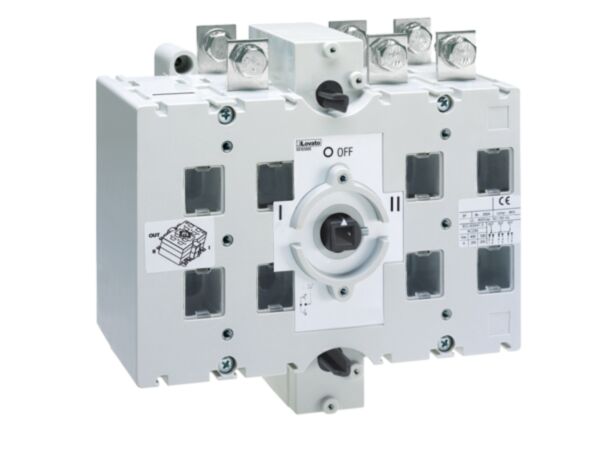

GE0250E - 3P CHANGEOVER SWITCH

Why Choose the GE0250E?

Designed for dependable source transfer, the Lovato GE0250E three-pole changeover switch delivers 250 A AC performance across AC21A/AC22A/AC23A duties. With Ui 1000 V and Uimp 8 kV, this GE-series unit supports demanding changeover duties. The GE0250E mounts by screw on plate and provides IP20 frontal protection for safe panel integration.

Rated Ie includes 250 A at AC21A 400/500/690 V, 250 A at AC22A 400/500 V and 200 A at AC22A 690 V, with AC23A 180 A (400 V) and 150 A (500 V). Operational power reaches 100 kW at 400 V AC23A. With 100 kA conditional short-circuit (gG250 fuse), 24 Nm terminals and 10,000 mechanical cycles, it meets IEC/EN 60947-1/-3.

Key Benefits

• 250 A AC rating across AC21A, AC22A, and AC23A duties.
• High insulation: Ui 1000 V, impulse withstand Uimp 8 kV.
• Robust short-circuit capability: 100 kA conditional with gG250 fuse.
• Mechanical life of 10,000 cycles for dependable switching.
• IP20 frontal protection for safer panel integration.
• Screw-on plate installation simplifies secure mounting.
• Rated operational power up to 100 kW at 400 V AC23A.
• Operates from -25 to 55 °C; altitude up to 3000 m.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 250 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 250 A
• Operating current Ie AC21A 500 V: 250 A
• Operating current Ie AC21A 690 V: 250 A
• Operating current Ie AC22A 400 V: 250 A
• Operating current Ie AC22A 500 V: 250 A
• Operating current Ie AC22A 690 V: 200 A
• Operating current Ie AC23A 400 V: 180 A
• Operating current Ie AC23A 500 V: 150 A
• Power dissipation per pole (max): 8.5 W
• Rated operational power AC23A 400 V: 100 kW
• Rated operational power AC23A 690 V: 86 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG250
• Making capacity AC23A 400 V: 3150 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0250E three-pole changeover switch
• Installation and safety information

Applications

• Mains-to-generator source changeover for three-phase systems
• Switching resistive and mixed loads to AC21A/AC22A duty
• Motor and inductive load switching to AC23A ratings
• Industrial control panels and switchboards requiring 250 A changeover
• Maintenance bypass and backup power changeover circuits

Safety note: Install and commission only by qualified personnel. Isolate all supplies before work, use the specified gG250 fuse, tighten terminals to a maximum of 24 Nm, and adhere to the stated ratings and IP20 frontal protection.
